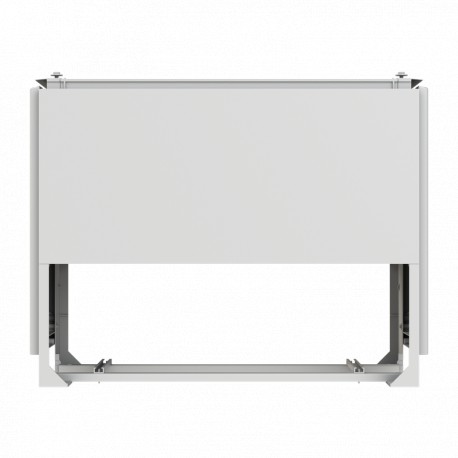

ABB 4TBE843668C0100 4TBE843668C0100 ABB EH3GD BASE DIN2 900X1200X676 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

4TBE843668C0100 ABB EH3GD BASE DIN2 900X1200X676

4TBE843668C0100

843668

ABB

1 Pcs.

EH3GD BASE DIN2 900X1200X676

Automation > Base/base element (switchgear cabinet)
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

4TBE843668C0100 ABB EH3GD BASE DIN2 900X1200X676 is an ABB base assembly designed to provide a durable foundational structure for large-scale electrical and automation enclosures. Base units elevate sensitive control gear off the floor while offering secure anchoring points and impact-resistant housing for heavy industrial setups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Maximum Load Capacity: 20.6727828746177 kg
  • Model Number: Base complete
  • Accessories Available: Yes
  • Impact Resistance Rating: IK10
  • Material: Plastic
  • RAL Number: RAL 7035 - Light Grey
  • Color: Grey
  • RoHS Declaration: CEN-CE19/562
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20191030
  • REACH Declaration: 9AJK000617
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • REACH Date: 20230911
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
  • WEEE Category: Product Not in WEEE Scope
  • Product Net Width: 1.2 m

More info

▲
Technical
Maximum Load Capacity20.6727828746177 kg
Model NumberBase complete
Accessories AvailableYes
Impact Resistance RatingIK10
Design
MaterialPlastic
RAL NumberRAL 7035 - Light Grey
ColorGrey
Material Compliance
RoHS DeclarationCEN-CE19/562
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20191030
REACH Declaration9AJK000617
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20230911
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Dimensions
Product Net Width1.2 m
Product Net Height0.9 m
Product Net Depth / Length0.676 m
Product Net Weight34.5 kg
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight36.4 kg
Replaced Product ID (OLD)843668
Certificates and Declarations
Declaration of Conformity - CECEN-CE19/562
Installation
Popular Downloads
Data Sheet, Technical Information9AKK107680A5160
External Classifications and Standards
ETIM 9EC000721 - Base/base element (enclosure/cabinet)
ETIM 10EC000721 - Base/base element (enclosure/cabinet)
eClassV11.0 : 27182003
