View larger
Images are for illustrative purposes only. Please refer to data sheet for details

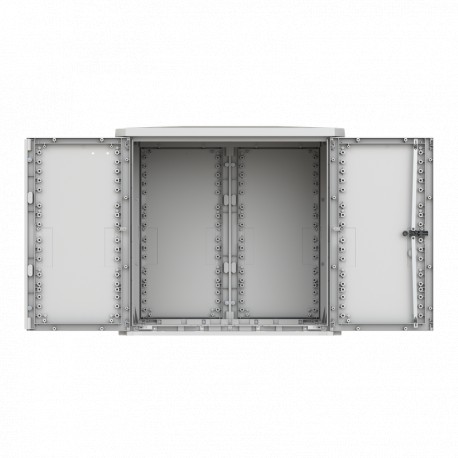

4TBE843656C0100 ABB EH3GD Box DIN2 AP 1125x1200x676 SH
4TBE843656C0100
4TBE843656C0100
ABB
1 Pcs.
EH3GD Box DIN2 AP 1125x1200x676 SH
EH3GD Cabinet DIN2 AP 1125x1200x676 SH
Automation > Empty cabinet
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Number of Connection Holes | 0 |
| Number of Doors | 2 |
| Cover Plate Type | Door |
| Door Type | Double |
| Accessories Available | Yes |
| Impact Resistance Rating | IK10 |
| Electrical | |
| Power Loss | Total 301.2 W |
| Δt = 20K - Enclosures 301.2 W | |
| Δt = 25K - Enclosures 397.5 W | |
| Δt = 30K - Enclosures 498.7 W | |
| Design | |
| Surface Finishing | Untreated |
| Housing Material | Plastic |
| Material | GRP (Glass fibre reinforced plastic) |
| Cover Style | Closed |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Material Compliance | |
| RoHS Declaration | 9AJK000002D006 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240610 |
| REACH Declaration | 9AJK000617 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 215fa296-b2d6-4cd1-a8ad-61649a8288ee Belgium |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Degree of Protection | IP44 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Product Net Width | 1200 mm |
| Product Net Height | 1125 mm |
| Product Net Depth / Length | 676 mm |
| Product Net Weight | 84 kg |
| Built-In Depth (t2) | 972 mm |
| Thickness | Cabinet Plate 25 mm |
| Door Plate 25 mm | |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 88.5 kg |
| Replaced Product ID (OLD) | 843656 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AJK000002D006 |
| Installation | |
| Mounting Type | Floor installation |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| External Classifications and Standards | |
| ETIM 9 | EC000261 - Enclosure/cabinet (empty) |
| ETIM 10 | EC000261 - Enclosure/cabinet (empty) |
| eClass | V11.0 : 27142408 |
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Floor installation |
| Type of covering (EF000339) | Door |
| Cover model (EF009212) | Closed |
| Type of door (EF004464) | Double |
| Transparent cover/door (EF006244) | No |
| With lock (EF006306) | Yes |
| Height (EF000040) | 1125 mm |
| Width (EF000008) | 1200 mm |
| Depth (EF000049) | 676 mm |
| Built-in depth (EF000218) | 972 mm |
| Inner depth (EF001131) | 1041 mm |
| Material plate thickness cabinet (EF009170) | 25 mm |
| Material plate thickness door/cover (EF009171) | 25 mm |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| Housing material (EF001596) | Plastic |
| Surface protection (EF000139) | Untreated |
| With mounting plate (EF000118) | No |
| Suitable for outdoor use (EF003532) | Yes |
| Suitable for lightning protection (EF007800) | No |
| Degree of protection (IP) (EF005474) | IP44 |
| Protection class according to IEC 61140 (EF000004) | II |
| Impact strength (EF004293) | IK10 |
| Circuit integrity (EF001613) | None |
