View larger
Images are for illustrative purposes only. Please refer to data sheet for details

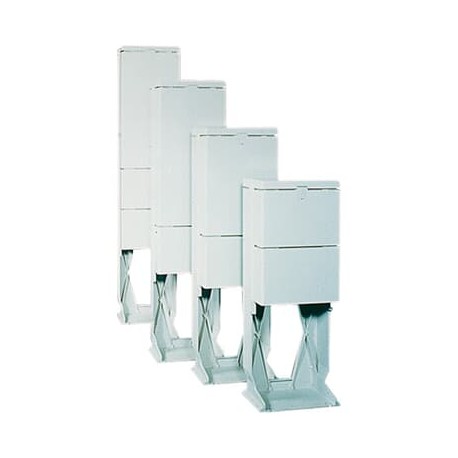

4TBE842072C0100 ABB EH2-NA (1097x425x240)
4TBE842072C0100
842072
ABB
1 Pcs.
EH2-NA (1097x425x240)
EH 2-NA PEDESTAL
Automation > Empty cabinet
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Cover Plate Type | Cover |
| Door Type | Panel Door |
| Accessories Available | Yes |
| Electrical | |
| Power Loss | Δt = 20K 35.5 W |
| Δt = 25K 46.9 W | |
| Δt = 30K 58.8 W | |
| Design | |
| Surface Finishing | Untreated |
| Housing Material | Plastic |
| Cover Style | Closed |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Material Compliance | |
| RoHS Declaration | CEN-CE19/559 |
| EH2-Equipped_GE_CE_GEN-CE19-564_L43 | |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20191030 |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Degree of Protection | IP44 |
| Dimensions | |
| Product Net Width | 433 mm |
| Product Net Height | 240 mm |
| Product Net Depth / Length | 1097 mm |
| Product Net Weight | 11.6 kg |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 12.3 kg |
| Replaced Product ID (OLD) | 842072 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | CEN-CE19/559 |
| EH2-Equipped_GE_CE_GEN-CE19-564_L43 | |
| Installation | |
| Mounting Type | Pedestal (in-ground mounting) |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| External Classifications and Standards | |
| ETIM 9 | EC000261 - Enclosure/cabinet (empty) |
| ETIM 10 | EC000261 - Enclosure/cabinet (empty) |
| eClass | V11.0 : 27142408 |
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Pedestal (in-ground mounting) |
| Type of covering (EF000339) | Cover |
| Cover model (EF009212) | Closed |
| Type of door (EF004464) | Compartment door |
| Transparent cover/door (EF006244) | No |
| With lock (EF006306) | Yes |
| Height (EF000040) | 240 mm |
| Width (EF000008) | 433 mm |
| Depth (EF000049) | 1097 mm |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| Housing material (EF001596) | Plastic |
| Surface protection (EF000139) | Untreated |
| With mounting plate (EF000118) | No |
| Suitable for outdoor use (EF003532) | Yes |
| Suitable for lightning protection (EF007800) | No |
| Degree of protection (IP) (EF005474) | IP44 |
| Impact strength (EF004293) | IK10 |
| Circuit integrity (EF001613) | None |
