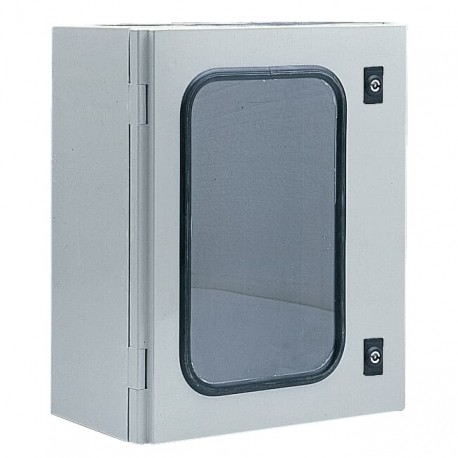

4TBA831814C0100 ABB WARDROBE ARIA 75V 2SEVERAL 3mm
4TBA831814C0100
831814
ABB
1 Pcs.
Automation > Empty cabinet
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Abb Aria wardrobe enclosure series provides spacious modular housing for industrial control gear, automation systems, and electrical distribution equipment. Floor-standing or wall-mounted cabinets of this type offer secure, organized environments for complex installations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Accessories Available: Yes
- CAD Dimensional Drawing: 4TBA831814C0100STP
- CN8: 85381000
- Color: Grey
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- Country or Territory of Origin: Hungary
- Cover Plate Type: Door
- Cover Style: Closed
- Customs Tariff Number: 85381000
- Data Sheet, Technical Information: 9AKK107680A5160
- Declaration of Conformity - CE: 9AJK000579
- Degree of Protection: IP54
- Door Surface Finishing: Transparent
- Door Type: Single
- EAN: 5411815235146
- ETIM 10: EC000261 - Enclosure/cabinet (empty)
More info
▲| Additional Information | |
|---|---|
| Accessories Available | Yes |
| CAD Dimensional Drawing | 4TBA831814C0100STP |
| CN8 | 85381000 |
| Color | Grey |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Country or Territory of Origin | Hungary |
| Cover Plate Type | Door |
| Cover Style | Closed |
| Customs Tariff Number | 85381000 |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| 2CKA000001A1855 | |
| Declaration of Conformity - CE | 9AJK000579 |
| Degree of Protection | IP54 |
| Door Surface Finishing | Transparent |
| Door Type | Single |
| EAN | 5411815235146 |
| ETIM 10 | EC000261 - Enclosure/cabinet (empty) |
| ETIM 7 | EC000058 - Empty cabinet |
| ETIM 8 | EC000261 - Enclosure/cabinet (empty) |
| ETIM 9 | EC000261 - Enclosure/cabinet (empty) |
| EU Data Act Applicability and Compliance | Not Applicable |
| Enclosure Type NEMA | Type12 |
| Gross Weight | 12 kg |
| Housing Material | Plastic |
| Impact Resistance Rating | IK07 |
| Interior Depth | 248 mm |
| Invoice Description | ARIA 75 CABINET+WINDOW 2PLS DB 3MM |
| Material | GRP (Glass fibre reinforced plastic) |
| Maximum Load Capacity | Enclosure 1334.16 N |
| Door(s) 78.48 N | |
| Mounting Plate 1334.16 N | |
| Minimum Order Quantity | BX 1 piece |
| Mounting Type | Surface mounted |
| Number of Conduit Inlets | 0 |
| Number of Connection Holes | 0 |
| Number of Doors | 1 |
| Number of Flange Openings | 0 |
| Number of Locks | 2 |
| Number of Modules | 0 |
| Number of Rows | 0 |
| Package Level 1 Depth / Length | 740 mm |
| Package Level 1 EAN | 5411815235146 |
| Package Level 1 Gross Weight | 12 kg |
| Package Level 1 Height | 255 mm |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 535 mm |
| Package Level 3 Depth / Length | 120 mm |
| Package Level 3 Gross Weight | 120 kg |
| Package Level 3 Height | 225 mm |
| Package Level 3 Units | box 12 piece |
| Package Level 3 Width | 80 mm |
| Power Loss | Total 67 W |
| Δt = 20K - Enclosures 67 W | |
| Product Main Type | ARIA |
| Product Name | Cabinet |
| Product Net Depth / Length | 276 mm |
| Product Net Height | 735 mm |
| Product Net Weight | 11.4 kg |
| Product Net Width | 535 mm |
| Protection Class | Isolated (Class II) |
| RAL Number | RAL 7035 - Light Grey |
| REACH Date | 20230911 |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| Replaced Product ID (OLD) | 831814 |
| RoHS Date | 20220302 |
| RoHS Declaration | 9AJK000579 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Selling Unit of Measure | piece |
| Short Description | ARIA 75 CABINET+WINDOW 2PLS DB 3MM |
| Surface Finishing | Untreated |
| Thickness | Cabinet Plate 3 mm |
| Door Plate 3 mm | |
| UNSPSC | 39121103 |
| WEEE Category | Product Not in WEEE Scope |
| Width in Number of Modular Spacings | 0 |
| eClass | V11.0 : 27142408 |
| Product Keywords | Not Available |
