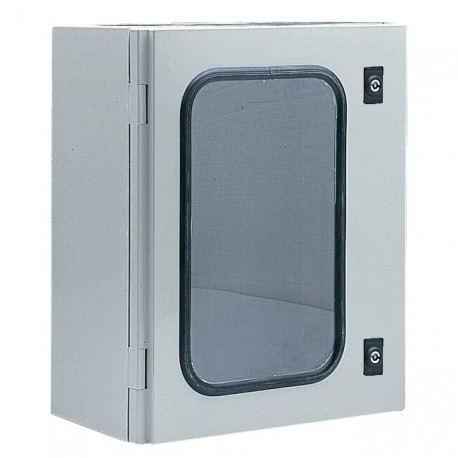

4TBA831813C0100 ABB WARDROBE ARIA 64V 2SEVERAL 3mm
4TBA831813C0100
831813
ABB
1 Pcs.
Automation > Empty cabinet
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Providing dependable wall-mounted housing for electrical controls, the 4TBA831813C0100 ABB WARDROBE ARIA 64V 2SEVERAL 3mm protects sensitive automation hardware from adverse environmental factors. Industrial facilities rely on these transparent-door wardrobes to safely house distribution components while allowing quick visual inspection of internal equipment.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Accessories Available: Yes
- CAD Dimensional Drawing: 4TBA831813C0100STP
- CN8: 85381000
- Color: Grey
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- Country or Territory of Origin: Hungary
- Cover Plate Type: Door
- Cover Style: Closed
- Customs Tariff Number: 85381000
- Data Sheet, Technical Information: 9AKK107680A5160
- Declaration of Conformity - CE: 9AJK000579
- Degree of Protection: IP54
- Door Surface Finishing: Transparent
- Door Type: Single
- ETIM 10: EC000261 - Enclosure/cabinet (empty)
More info
▲| Additional Information | |
|---|---|
| Accessories Available | Yes |
| CAD Dimensional Drawing | 4TBA831813C0100STP |
| CN8 | 85381000 |
| Color | Grey |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Country or Territory of Origin | Hungary |
| Cover Plate Type | Door |
| Cover Style | Closed |
| Customs Tariff Number | 85381000 |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| 2CKA000001A1855 | |
| Declaration of Conformity - CE | 9AJK000579 |
| Degree of Protection | IP54 |
| Door Surface Finishing | Transparent |
| Door Type | Single |
| EAN | 5411815235139 |
| ETIM 10 | EC000261 - Enclosure/cabinet (empty) |
| ETIM 7 | EC000058 - Empty cabinet |
| ETIM 8 | EC000261 - Enclosure/cabinet (empty) |
| ETIM 9 | EC000261 - Enclosure/cabinet (empty) |
| EU Data Act Applicability and Compliance | Not Applicable |
| Enclosure Type NEMA | Type12 |
| Gross Weight | 7.4 kg |
| Housing Material | Plastic |
| Impact Resistance Rating | IK07 |
| Interior Depth | 208 mm |
| Invoice Description | ARIA 64 CABINET+WINDOW 2PLS DB 3MM |
| Material | GRP (Glass fibre reinforced plastic) |
| Maximum Load Capacity | Enclosure 1334.16 N |
| Door(s) 78.48 N | |
| Mounting Plate 1334.16 N | |
| Minimum Order Quantity | BX 1 piece |
| Mounting Type | Surface mounted |
| Number of Conduit Inlets | 0 |
| Number of Connection Holes | 0 |
| Number of Doors | 1 |
| Number of Flange Openings | 0 |
| Number of Locks | 2 |
| Number of Modules | 0 |
| Number of Rows | 0 |
| Package Level 1 Depth / Length | 620 mm |
| Package Level 1 EAN | 5411815235139 |
| Package Level 1 Gross Weight | 7.4 kg |
| Package Level 1 Height | 220 mm |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 3 Depth / Length | 1.2 m |
| Package Level 3 Gross Weight | 147.4 kg |
| Package Level 3 Height | 1.85 m |
| Package Level 3 Units | pallet (lift) 20 piece |
| Package Level 3 Width | 0.8 m |
| Power Loss | Total 48 W |
| Δt = 20K - Enclosures 48 W | |
| Product Main Type | ARIA |
| Product Name | Cabinet |
| Product Net Depth / Length | 236 mm |
| Product Net Height | 615 mm |
| Product Net Weight | 7 kg |
| Product Net Width | 415 mm |
| Protection Class | Isolated (Class II) |
| RAL Number | RAL 7035 - Light Grey |
| REACH Date | 20230911 |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| Replaced Product ID (OLD) | 831813 |
| RoHS Date | 20220302 |
| RoHS Declaration | 9AJK000579 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Selling Unit of Measure | piece |
| Short Description | ARIA 64 CABINET+WINDOW 2PLS DB 3MM |
| Surface Finishing | Untreated |
| Thickness | Cabinet Plate 3 mm |
| Door Plate 3 mm | |
| UNSPSC | 39121103 |
| WEEE Category | Product Not in WEEE Scope |
| Width in Number of Modular Spacings | 0 |
| eClass | V11.0 : 27142408 |
