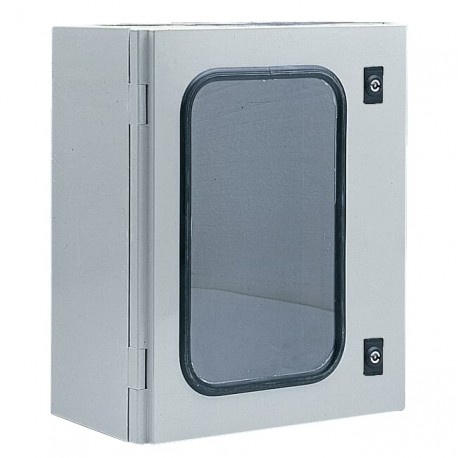

4TBA831812C0100 ABB WARDROBE ARIA 54V 2CIERRES 3mm
4TBA831812C0100
831812
ABB
1 Pcs.
Automation > Empty cabinet
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed to house electrical control components, this ABB Wardrobe Aria cabinet (4TBA831812C0100) serves as an empty enclosure for wall or structural installation. Such units organize automation systems and safeguard internal wiring infrastructure against dust and liquid ingress in demanding commercial facilities.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Accessories Available: Yes
- CAD Dimensional Drawing: 4TBA831812C0100STP
- CN8: 85381000
- Color: Grey
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- Country or Territory of Origin: Hungary
- Cover Plate Type: Door
- Cover Style: Closed
- Customs Tariff Number: 85381000
- Data Sheet, Technical Information: 9AKK107680A5160
- Declaration of Conformity - CE: 9AJK000579
- Degree of Protection: IP54
- Door Surface Finishing: Transparent
- Door Type: Single
- EAN: 5411815235122
- ETIM 10: EC000261 - Enclosure/cabinet (empty)
More info
▲| Additional Information | |
|---|---|
| Accessories Available | Yes |
| CAD Dimensional Drawing | 4TBA831812C0100STP |
| CN8 | 85381000 |
| Color | Grey |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Country or Territory of Origin | Hungary |
| Cover Plate Type | Door |
| Cover Style | Closed |
| Customs Tariff Number | 85381000 |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| 2CKA000001A1855 | |
| Declaration of Conformity - CE | 9AJK000579 |
| Degree of Protection | IP54 |
| Door Surface Finishing | Transparent |
| Door Type | Single |
| EAN | 5411815235122 |
| ETIM 10 | EC000261 - Enclosure/cabinet (empty) |
| ETIM 7 | EC000058 - Empty cabinet |
| ETIM 8 | EC000261 - Enclosure/cabinet (empty) |
| ETIM 9 | EC000261 - Enclosure/cabinet (empty) |
| EU Data Act Applicability and Compliance | Not Applicable |
| Enclosure Type NEMA | Type12 |
| Gross Weight | 7.4 kg |
| Housing Material | Plastic |
| Impact Resistance Rating | IK07 |
| Interior Depth | 208 mm |
| Invoice Description | ARIA 54 CABINET+WINDOW 2PLS DB 3MM |
| Material | GRP (Glass fibre reinforced plastic) |
| Maximum Load Capacity | Enclosure 1334.16 N |
| Door(s) 78.48 N | |
| Mounting Plate 1334.16 N | |
| Minimum Order Quantity | BX 1 piece |
| Mounting Type | Surface mounted |
| Number of Conduit Inlets | 0 |
| Number of Connection Holes | 0 |
| Number of Doors | 1 |
| Number of Flange Openings | 0 |
| Number of Locks | 2 |
| Number of Modules | 0 |
| Number of Rows | 0 |
| Package Level 1 Depth / Length | 528 mm |
| Package Level 1 EAN | 5411815235122 |
| Package Level 1 Gross Weight | 7.4 kg |
| Package Level 1 Height | 265 mm |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 431 mm |
| Package Level 3 Depth / Length | 1.2 m |
| Package Level 3 Gross Weight | 175.9 kg |
| Package Level 3 Height | 1.75 m |
| Package Level 3 Units | pallet (lift) 24 piece |
| Package Level 3 Width | 0.8 m |
| Power Loss | Total 40 W |
| Δt = 20K - Enclosures 40 W | |
| Product Main Type | ARIA |
| Product Name | Cabinet |
| Product Net Depth / Length | 236 mm |
| Product Net Height | 515 mm |
| Product Net Weight | 7 kg |
| Product Net Width | 415 mm |
| Protection Class | Isolated (Class II) |
| RAL Number | RAL 7035 - Light Grey |
| REACH Date | 20230911 |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| Replaced Product ID (OLD) | 831812 |
| RoHS Date | 20220302 |
| RoHS Declaration | 9AJK000579 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Selling Unit of Measure | piece |
| Short Description | ARIA 54 CABINET+WINDOW 2PLS DB 3MM |
| Surface Finishing | Untreated |
| Thickness | Cabinet Plate 3 mm |
| Door Plate 3 mm | |
| UNSPSC | 39121103 |
| WEEE Category | Product Not in WEEE Scope |
| Width in Number of Modular Spacings | 0 |
| eClass | V11.0 : 27142408 |
| Product Keywords | Not Available |
