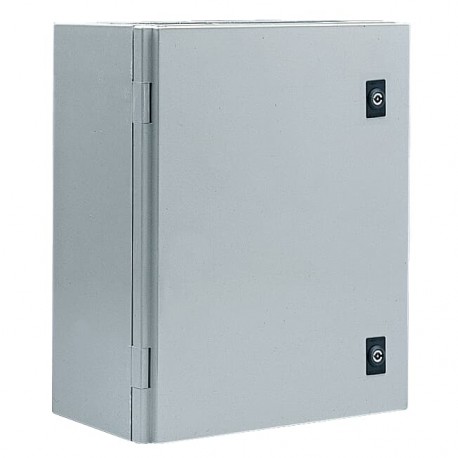

4TBA831811C0100 ABB WARDROBE ARIA 75 2WINGS 3mm
4TBA831811C0100
831811
ABB
1 Pcs.
Automation > Empty cabinet
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 4TBA831811C0100 ABB WARDROBE ARIA 75 2WINGS 3mm functions as an empty cabinet enclosure designed to house and protect electrical distribution equipment and control components in industrial settings. Cabinets of this type provide physical security and environmental protection for sensitive internal hardware against dust and moisture. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Accessories Available: Yes
- CAD Dimensional Drawing: 4TBA831811C0100STP
- CN8: 85381000
- Color: Grey
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- Country or Territory of Origin: Hungary
- Cover Plate Type: Door
- Cover Style: Closed
- Customs Tariff Number: 85381000
- Data Sheet, Technical Information: 9AKK107680A5160
- Declaration of Conformity - CE: 9AJK000579
- Degree of Protection: IP65
- Door Type: Single
- EAN: 5411815235115
- ETIM 10: EC000261 - Enclosure/cabinet (empty)
- ETIM 7: EC000058 - Empty cabinet
More info
▲| Additional Information | |
|---|---|
| Accessories Available | Yes |
| CAD Dimensional Drawing | 4TBA831811C0100STP |
| CN8 | 85381000 |
| Color | Grey |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Country or Territory of Origin | Hungary |
| Cover Plate Type | Door |
| Cover Style | Closed |
| Customs Tariff Number | 85381000 |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| 2CKA000001A1855 | |
| Declaration of Conformity - CE | 9AJK000579 |
| Degree of Protection | IP65 |
| Door Type | Single |
| EAN | 5411815235115 |
| ETIM 10 | EC000261 - Enclosure/cabinet (empty) |
| ETIM 7 | EC000058 - Empty cabinet |
| ETIM 8 | EC000261 - Enclosure/cabinet (empty) |
| ETIM 9 | EC000261 - Enclosure/cabinet (empty) |
| EU Data Act Applicability and Compliance | Not Applicable |
| Enclosure Type NEMA | Type12 |
| Gross Weight | 12.7 kg |
| Housing Material | Plastic |
| Impact Resistance Rating | IK08 |
| Interior Depth | 248 mm |
| Invoice Description | ARIA 75 CABINET 2PLS DB 3MM |
| Material | GRP (Glass fibre reinforced plastic) |
| Maximum Load Capacity | Enclosure 1334.16 N |
| Door(s) 78.48 N | |
| Mounting Plate 1334.16 N | |
| Minimum Order Quantity | BX 1 piece |
| Mounting Type | Surface mounted |
| Number of Conduit Inlets | 0 |
| Number of Doors | 1 |
| Number of Flange Openings | 0 |
| Number of Locks | 2 |
| Number of Modules | 0 |
| Number of Rows | 0 |
| Package Level 1 Depth / Length | 740 mm |
| Package Level 1 EAN | 5411815235115 |
| Package Level 1 Gross Weight | 12.7 kg |
| Package Level 1 Height | 255 mm |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 535 mm |
| Package Level 3 Depth / Length | 120 mm |
| Package Level 3 Gross Weight | 126.3 kg |
| Package Level 3 Height | 225 mm |
| Package Level 3 Units | box 12 piece |
| Package Level 3 Width | 80 mm |
| Power Loss | Total 67 W |
| Δt = 20K - Enclosures 67 W | |
| Product Main Type | ARIA |
| Product Name | Cabinet |
| Product Net Depth / Length | 270 mm |
| Product Net Height | 735 mm |
| Product Net Weight | 12 kg |
| Product Net Width | 535 mm |
| Protection Class | Isolated (Class II) |
| RAL Number | RAL 7035 - Light Grey |
| REACH Date | 20230911 |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| Replaced Product ID (OLD) | 831811 |
| RoHS Date | 20220302 |
| RoHS Declaration | 9AJK000579 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Selling Unit of Measure | piece |
| Short Description | ARIA 75 CABINET 2PLS DB 3MM |
| Surface Finishing | Untreated |
| Thickness | Cabinet Plate 3 mm |
| Door Plate 3 mm | |
| UNSPSC | 39121103 |
| WEEE Category | Product Not in WEEE Scope |
| Width in Number of Modular Spacings | 0 |
| eClass | V11.0 : 27142408 |
| Product Keywords | Not Available |
