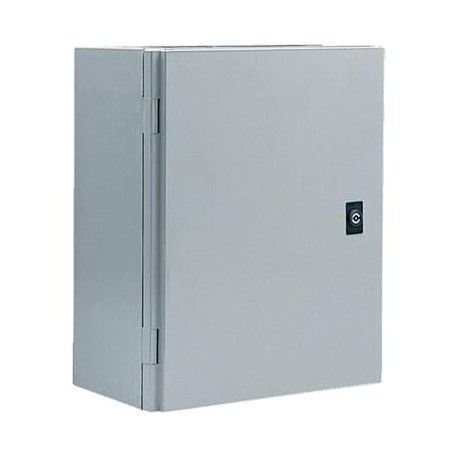

ABB 4TBA831182N0100 4TBA831182N0100 ABB DOOR ARIA 108 WINDOW 3P View larger
Images are for illustrative purposes only. Please refer to data sheet for details

4TBA831182N0100 ABB DOOR ARIA 108 WINDOW 3P

4TBA831182N0100

831182

ABB

1 Pcs.

DOOR ARIA 108 WINDOW 3P

Automation > Door/operating panel (switchgear cabinet)
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB compartment door 4TBA831182N0100 serves as a localized protective cover for modular sub-assemblies inside larger electrical distribution panels. These components are routinely integrated into industrial automation configurations to restrict internal access to authorized personnel and protect components from external particles. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model Number: Compartment door
  • Surface Finishing: Untreated
  • Material: Plastic
  • Color: Grey
  • REACH Declaration: 9AJK000617
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • REACH Date: 20230911
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
  • WEEE Category: Product Not in WEEE Scope
  • WEEE B2C / B2B: Business To Business
  • Product Net Width: 835 mm
  • Product Net Height: 1035 mm
  • Product Net Depth / Length: 40 mm
  • Product Net Weight: 1 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Gross Weight: 1 kg

More info

▲
Technical
Model NumberCompartment door
Design
Surface FinishingUntreated
MaterialPlastic
ColorGrey
Material Compliance
REACH Declaration9AJK000617
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20230911
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
WEEE B2C / B2BBusiness To Business
Dimensions
Product Net Width835 mm
Product Net Height1035 mm
Product Net Depth / Length40 mm
Product Net Weight1 kg
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight1 kg
Replaced Product ID (OLD)831182
Installation
Popular Downloads
External Classifications and Standards
ETIM 9EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 10EC000747 - Door/operating panel (enclosure/cabinet)
eClassV11.0 : 27182204

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
