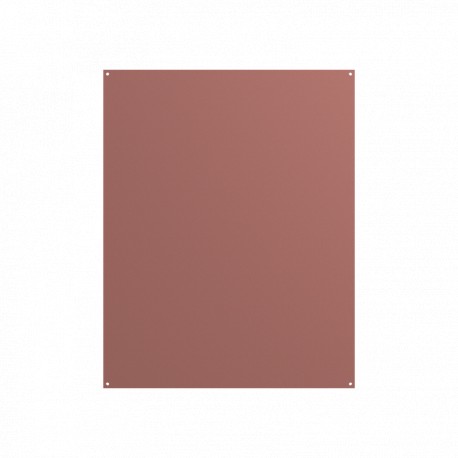

ABB 4TBA831114C0100 4TBA831114C0100 ABB PERTINAX PLATE ARIA 108 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

4TBA831114C0100 ABB PERTINAX PLATE ARIA 108

4TBA831114C0100

831114

ABB

1 Pcs.

PERTINAX PLATE ARIA 108 ARIA 108 MOUNT.PL.(PERTINAX)

Automation > Mounting plate for distribution board
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB 4TBA831114C0100 Pertinax mounting plate supplies an insulating, non-conductive backplane surface designed for specialized electrical distribution boards and control panel setups. Insulating plates protect sensitive circuitry from stray currents and ground faults within metallic housings.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Surface Finishing: Untreated
  • Material: Pertinax
  • REACH Declaration: 9AJK000617
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • REACH Date: 20230911
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
  • WEEE Category: Product Not in WEEE Scope
  • Product Net Width: 750 mm
  • Product Net Height: 950 mm
  • Product Net Depth / Length: 5 mm
  • Product Net Weight: 5.2 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Gross Weight: 5.5 kg
  • Replaced Product ID (OLD): 831114
  • Data Sheet, Technical Information: 9AKK107680A5160
  • ETIM 9: EC000213 - Mounting plate for distribution board

More info

▲
Design
Surface FinishingUntreated
MaterialPertinax
Material Compliance
REACH Declaration9AJK000617
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20230911
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Dimensions
Product Net Width750 mm
Product Net Height950 mm
Product Net Depth / Length5 mm
Product Net Weight5.2 kg
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight5.5 kg
Replaced Product ID (OLD)831114
Certificates and Declarations
Installation
Popular Downloads
Data Sheet, Technical Information9AKK107680A5160
External Classifications and Standards
ETIM 9EC000213 - Mounting plate for distribution board
ETIM 10EC000213 - Mounting plate for distribution board
UNSPSC39121302
eClassV11.0 : 27400639
IDEA Granular Category Code (IGCC)4416 >> Enclosure plates or covers
