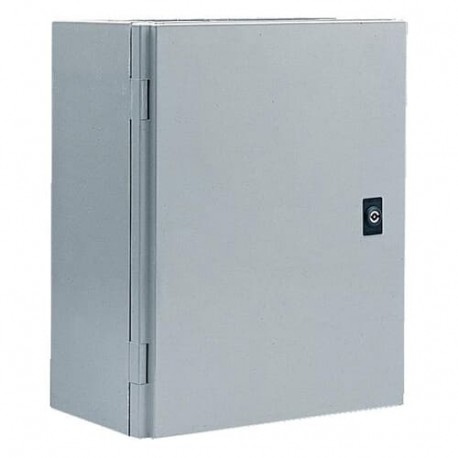

ABB 4TBA831110C0100 4TBA831110C0100 ABB FULL DOOR ARIA 108 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

4TBA831110C0100 ABB FULL DOOR ARIA 108

4TBA831110C0100

831110

ABB

1 Pcs.

FULL DOOR ARIA 108 ARIA 108 DOOR C/W LOCK

Automation > Door/operating panel (switchgear cabinet)
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 4TBA831110C0100 ABB FULL DOOR ARIA 108 by Abb is a heavy-duty enclosure door designed for demanding industrial environments. Full-size enclosure doors are typically deployed on wall-mounted or freestanding electrical distribution boxes to provide secure, weather-resistant protection for automated machinery controls. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model Number: Compartment door
  • Enclosure Type NEMA: Type4X
  • Surface Finishing: Untreated
  • Material: Plastic
  • Color: Grey
  • REACH Declaration: 9AJK000617
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • REACH Date: 20230911
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
  • WEEE Category: Product Not in WEEE Scope
  • Degree of Protection: IP66
  • Product Net Width: 835 mm
  • Product Net Height: 1035 mm
  • Product Net Depth / Length: 40 mm
  • Product Net Weight: 7.8 kg
  • Package Level 1 Units: box 1 piece

More info

▲
Technical
Model NumberCompartment door
Enclosure Type NEMAType4X
Design
Surface FinishingUntreated
MaterialPlastic
ColorGrey
Material Compliance
REACH Declaration9AJK000617
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20230911
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Environmental
Degree of ProtectionIP66
Dimensions
Product Net Width835 mm
Product Net Height1035 mm
Product Net Depth / Length40 mm
Product Net Weight7.8 kg
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight8.3 kg
Replaced Product ID (OLD)831110
Certificates and Declarations
Installation
Popular Downloads
Data Sheet, Technical Information9AKK107680A5160
External Classifications and Standards
ETIM 9EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 10EC000747 - Door/operating panel (enclosure/cabinet)
eClassV11.0 : 27182204
