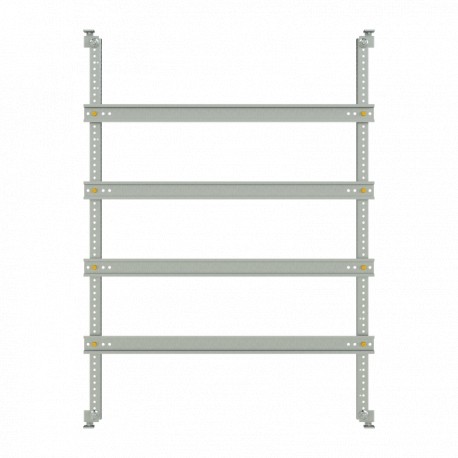

4TBA831103C0100 ABB CHASSIS ARIA 86
4TBA831103C0100
831103
ABB
1 Pcs.
CHASSIS ARIA 86
ARIA 86 MOUNT.FRAME
Automation > Spacer frame (enclosure/cabinet)
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Constructing organized sub-assemblies inside electrical distribution panels relies on components like the ABB CHASSIS ARIA 86. Spacer frames provide secure attachment points and structural stability for panel-mounted devices.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Accessories Available: Yes
- REACH Declaration: 9AJK000617
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20230911
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- WEEE Category: Product Not in WEEE Scope
- Product Net Width: 635 mm
- Product Net Height: 835 mm
- Product Net Depth / Length: 35 mm
- Product Net Weight: 2.4 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Gross Weight: 2.5 kg
- Replaced Product ID (OLD): 831103
- Data Sheet, Technical Information: 9AKK107680A5160
- ETIM 9: EC002528 - Spacer frame (enclosure/cabinet)
- ETIM 10: EC002528 - Spacer frame (enclosure/cabinet)
More info
▲| Technical | |
|---|---|
| Accessories Available | Yes |
| Material Compliance | |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 635 mm |
| Product Net Height | 835 mm |
| Product Net Depth / Length | 35 mm |
| Product Net Weight | 2.4 kg |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 2.5 kg |
| Replaced Product ID (OLD) | 831103 |
| Certificates and Declarations | |
| Installation | |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| External Classifications and Standards | |
| ETIM 9 | EC002528 - Spacer frame (enclosure/cabinet) |
| ETIM 10 | EC002528 - Spacer frame (enclosure/cabinet) |
| UNSPSC | 39121321 |
| eClass | V11.0 : 27182302 |
| IDEA Granular Category Code (IGCC) | 4465 >> Enclosure General Accessories |
