View larger
Images are for illustrative purposes only. Please refer to data sheet for details

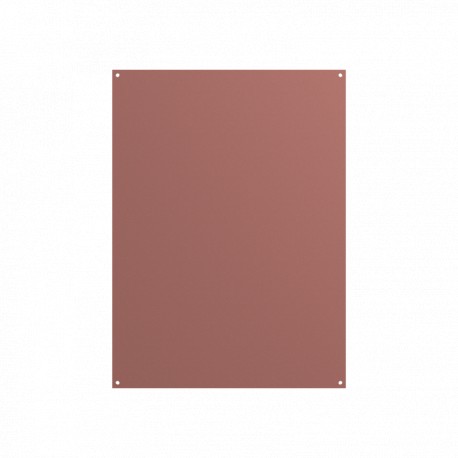

4TBA831100C0100 ABB PERTINAX PLATE ARIA 86
4TBA831100C0100
831100
ABB
1 Pcs.
PERTINAX PLATE ARIA 86
ARIA 86 MOUNT.PL.(PERTINAX)
Automation > Mounting plate for distribution board
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Additional Information | |
|---|---|
| CAD Dimensional Drawing | 4TBA831100C0100STP |
| CN8 | 85389099 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Country or Territory of Origin | Belgium |
| Customs Tariff Number | 85389099 |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| EAN | 5411815234293 |
| ETIM 10 | EC000213 - Mounting plate for distribution board |
| ETIM 7 | EC000213 - Mounting plate for distribution board |
| ETIM 8 | EC000213 - Mounting plate for distribution board |
| ETIM 9 | EC000213 - Mounting plate for distribution board |
| EU Data Act Applicability and Compliance | Not Applicable |
| Gross Weight | 3.2 kg |
| IDEA Granular Category Code (IGCC) | 4416 >> Enclosure plates or covers |
| Invoice Description | ARIA 86 MOUNT.PL.(PERTINAX) |
| Material | Pertinax |
| Minimum Order Quantity | BX 1 piece |
| Package Level 1 Depth / Length | 750 mm |
| Package Level 1 EAN | 5411815234293 |
| Package Level 1 Gross Weight | 3.2 kg |
| Package Level 1 Height | 5 mm |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 550 mm |
| Product Main Type | ARIA |
| Product Name | ARIA 86 MOUNT.PL.(PERTINAX) ; AR086I03 |
| Product Net Depth / Length | 5 mm |
| Product Net Height | 750 mm |
| Product Net Weight | 3 kg |
| Product Net Width | 550 mm |
| REACH Date | 20230911 |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| Replaced Product ID (OLD) | 831100 |
| Selling Unit of Measure | piece |
| Short Description | ARIA 86 MOUNT.PL.(PERTINAX) |
| Surface Finishing | Untreated |
| UNSPSC | 39121302 |
| WEEE Category | Product Not in WEEE Scope |
| eClass | V11.0 : 27400639 |
| Product Keywords | Not Available |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 750 mm |
| Width (EF000008) | 550 mm |
| Surface protection (EF000139) | Untreated |
| Perforated (EF000115) | No |
