4TBA831083C0100 ABB PERTINAX PLATE ARIA 75
4TBA831083C0100
831083
ABB
1 Pcs.
Automation > Mounting plate for distribution board
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

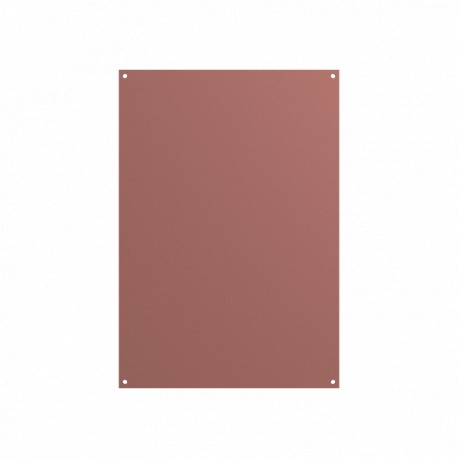

The ABB 4TBA831083C0100 Pertinax plate is an insulating panel utilized within electrical distribution enclosures to mount live components safely while preventing electrical conductivity through the backing. Such panels provide dependable mechanical support and reliable dielectric properties for specialized industrial setups.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Surface Finishing: Untreated
- Material: Pertinax
- REACH Declaration: 9AJK000617
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20230911
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- WEEE Category: Product Not in WEEE Scope
- Product Net Width: 450 mm
- Product Net Height: 650 mm
- Product Net Depth / Length: 5 mm
- Product Net Weight: 2.2 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Gross Weight: 2.3 kg
- Replaced Product ID (OLD): 831083
- Data Sheet, Technical Information: 9AKK107680A5160
- ETIM 9: EC000213 - Mounting plate for distribution board
More info
▲| Design | |
|---|---|
| Surface Finishing | Untreated |
| Material | Pertinax |
| Material Compliance | |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 450 mm |
| Product Net Height | 650 mm |
| Product Net Depth / Length | 5 mm |
| Product Net Weight | 2.2 kg |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 2.3 kg |
| Replaced Product ID (OLD) | 831083 |
| Certificates and Declarations | |
| Installation | |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| External Classifications and Standards | |
| ETIM 9 | EC000213 - Mounting plate for distribution board |
| ETIM 10 | EC000213 - Mounting plate for distribution board |
| UNSPSC | 39121302 |
| eClass | V11.0 : 27400639 |
| IDEA Granular Category Code (IGCC) | 4416 >> Enclosure plates or covers |
