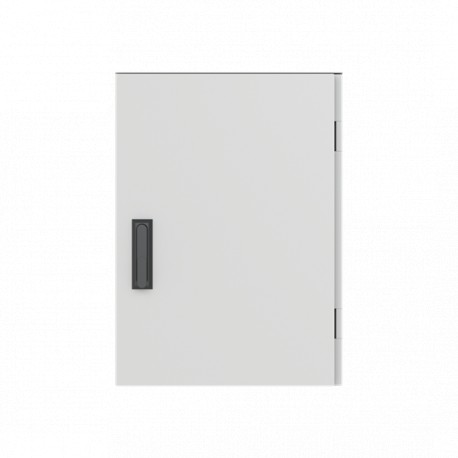

4TBA831080C0100 ABB ARIA 75 WARDROBE WITH HANDLE
4TBA831080C0100
831080
ABB
1 Pcs.
Automation > Empty cabinet
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
4TBA831080C0100 ABB ARIA 75 WARDROBE WITH HANDLE is a plastic enclosure produced by ABB, engineered to provide secure wall mounting for electrical distribution components and control devices. Enclosures outfitted with integrated handles offer convenient access for technicians performing routine inspections on production lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of Flange Openings: 0
- Number of Conduit Inlets: 0
- Number of Rows: 0
- Cover Plate Type: Door
- EnclosureType NEMA: Type12
- Door Type: Single
- Accessories Available: Yes
- Surface Finishing: Untreated
- Housing Material: Plastic
- Cover Style: Closed
- RAL Number: RAL 7035 - Light Grey
- Color: Grey
- Number of Modules: 0
- RoHS Declaration: 9AJK000579
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20220302
More info
▲| Technical | |
|---|---|
| Number of Flange Openings | 0 |
| Number of Conduit Inlets | 0 |
| Number of Rows | 0 |
| Cover Plate Type | Door |
| Enclosure Type NEMA | Type12 |
| Door Type | Single |
| Accessories Available | Yes |
| Design | |
| Surface Finishing | Untreated |
| Housing Material | Plastic |
| Cover Style | Closed |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Number of Modules | 0 |
| Material Compliance | |
| RoHS Declaration | 9AJK000579 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20220302 |
| REACH Declaration | 9AJK000617 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | a8d82fe4-9888-4846-8e4f-294183be3895 Belgium |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Degree of Protection | IP66 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Width in Number of Modular Spacings | 0 |
| Product Net Width | 535 mm |
| Product Net Height | 735 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 11.8 kg |
| Thickness | Cabinet Plate 3 mm |
| Door Plate 3 mm | |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 12.4 kg |
| Replaced Product ID (OLD) | 831080 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AJK000579 |
| Installation | |
| Mounting Type | Surface mounted |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| 2CKA000001A1855 | |
| External Classifications and Standards | |
| ETIM 9 | EC000261 - Enclosure/cabinet (empty) |
| ETIM 10 | EC000261 - Enclosure/cabinet (empty) |
| eClass | V11.0 : 27142408 |
