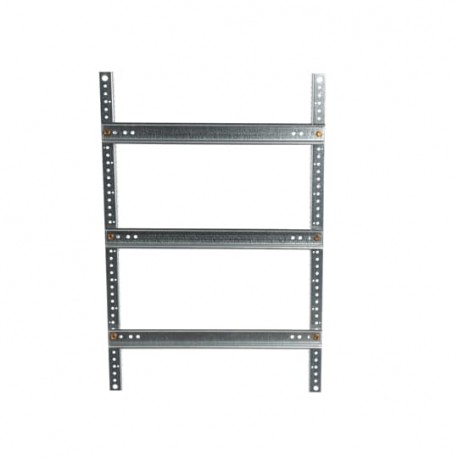

4TBA831070C0100 ABB ARIA 64 CHASSIS
4TBA831070C0100
831070
ABB
1 Pcs.
ARIA 64 CHASSIS
ARIA 64 MOUNT.FRAME
Automation > Spacer frame (enclosure/cabinet)
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Internal layout configuration and equipment mounting are streamlined using the ABB ARIA 64 CHASSIS. Such spacer frames provide reliable structural support for electrical components inside modular enclosure systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Accessories Available: Yes
- REACH Declaration: 9AJK000617
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20230911
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- WEEE Category: Product Not in WEEE Scope
- Product Net Width: 415 mm
- Product Net Height: 615 mm
- Product Net Depth / Length: 35 mm
- Product Net Weight: 1.4 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Gross Weight: 1.5 kg
- Replaced Product ID (OLD): 831070
- Data Sheet, Technical Information: 9AKK107680A5160
- ETIM 9: EC002528 - Spacer frame (enclosure/cabinet)
- ETIM 10: EC002528 - Spacer frame (enclosure/cabinet)
More info
▲| Technical | |
|---|---|
| Accessories Available | Yes |
| Material Compliance | |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 415 mm |
| Product Net Height | 615 mm |
| Product Net Depth / Length | 35 mm |
| Product Net Weight | 1.4 kg |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 1.5 kg |
| Replaced Product ID (OLD) | 831070 |
| Certificates and Declarations | |
| Installation | |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| External Classifications and Standards | |
| ETIM 9 | EC002528 - Spacer frame (enclosure/cabinet) |
| ETIM 10 | EC002528 - Spacer frame (enclosure/cabinet) |
| eClass | V11.0 : 27182302 |
