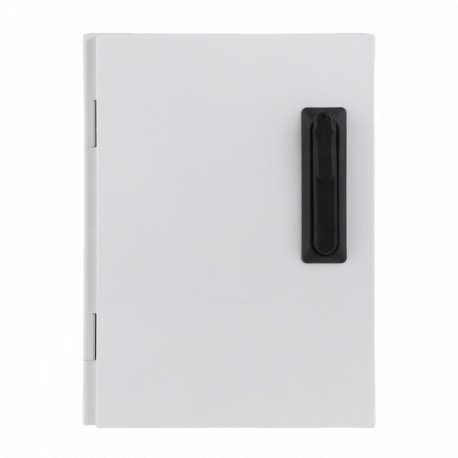

4TBA831034C0100 ABB ARIA 43 WARDROBE WITH HANDLE
4TBA831034C0100
831034
ABB
1 Pcs.
Automation > Enclosure/switchgear cabinet (empty)
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB 4TBA831034C0100 Aria 43 wardrobe with handle is a durable plastic enclosure intended to safeguard electrical distribution gear, meters, and industrial controls in demanding environments. Weatherproof and corrosion-resistant enclosures ensure reliable operation for outdoor or harsh indoor automation setups.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Maximum Load Capacity: Enclosure 1334.16 N
- Number of Flange Openings: 0
- Number of Connection Holes: 0
- Number of Conduit Inlets: 0
- Number of Doors: 1
- Number of Rows: 0
- Cover Plate Type: Door
- Enclosure Type NEMA: Type4X
- Door Type: Single
- Accessories Available: Yes
- Impact Resistance Rating: IK08
- Power Loss: Total 26 W
- Surface Finishing: Untreated
- Housing Material: Plastic
- Material: GRP (Glass fibre reinforced plastic)
- Cover Style: Closed
More info
▲| Technical | |
|---|---|
| Maximum Load Capacity | Enclosure 1334.16 N |
| Door(s) 49.05 N | |
| Mounting Plate 1334.16 N | |
| Number of Flange Openings | 0 |
| Number of Connection Holes | 0 |
| Number of Conduit Inlets | 0 |
| Number of Doors | 1 |
| Number of Rows | 0 |
| Cover Plate Type | Door |
| Enclosure Type NEMA | Type4X |
| Door Type | Single |
| Accessories Available | Yes |
| Impact Resistance Rating | IK08 |
| Electrical | |
| Power Loss | Total 26 W |
| Δt = 20K - Enclosures 26 W | |
| Design | |
| Surface Finishing | Untreated |
| Housing Material | Plastic |
| Material | GRP (Glass fibre reinforced plastic) |
| Cover Style | Closed |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Number of Modules | 0 |
| Material Compliance | |
| RoHS Declaration | 9AJK000579 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20220302 |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Degree of Protection | IP66 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Width in Number of Modular Spacings | 0 |
| Product Net Width | 315 mm |
| Product Net Height | 415 mm |
| Product Net Depth / Length | 170 mm |
| Product Net Weight | 4.3 kg |
| Thickness | Cabinet Plate 3 mm |
| Door Plate 3 mm | |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 4.5 kg |
| Replaced Product ID (OLD) | 831034 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AJK000579 |
| Installation | |
| Mounting Type | Surface mounted |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| 2CKA000001A1855 | |
| External Classifications and Standards | |
| ETIM 9 | EC000261 - Enclosure/cabinet (empty) |
| ETIM 10 | EC000261 - Enclosure/cabinet (empty) |
| UNSPSC | 39121103 |
| eClass | V11.0 : 27142408 |
