View larger
Images are for illustrative purposes only. Please refer to data sheet for details

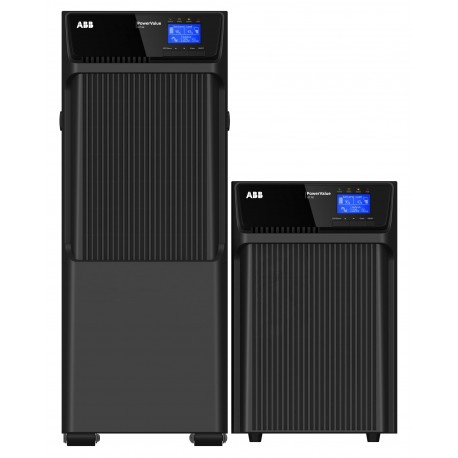

4NWP100151R0001 ABB PowerValue 11RT G2 10 kVA UPS
4NWP100151R0001
4NWP100151R0001
ABB
1 Pcs.
PowerValue 11RT G2 10 kVA UPS
UPS PowerValue 11RT G2 10 kVA
Automation > UPS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 4NWD005611 |
| RoHS Declaration | 4NWD005610 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 37726a6f-464f-434c-9772-44d032efdb6e Switzerland |
| Simplified SCIP | 799601fd-697c-488b-8716-623b6ddce152 Poland |
| 69fc6744-1afe-45da-9c4a-8ea1f2ef0c67 Belgium | |
| b916fa0e-6df4-47bb-8474-f153b1a60541 Spain | |
| 97ea4347-c984-46ed-a806-07c0cc33a3fc Greece | |
| 52b54b62-6605-499f-9fde-6210bf0dfd5a Estonia | |
| 21ae9035-648f-46e1-b653-78e6647c216e Finland | |
| f66ee011-598b-4640-ab0d-7a0d1bf97544 Germany | |
| 5d57227c-ddae-43fc-b62d-74487023d39f Germany | |
| 32f7a950-79a7-409b-9ef4-258df7f6da0f Germany | |
| 92d49e90-b21a-4ea3-83c8-2aee4d13d171 Sweden | |
| 58329ac6-908e-43de-be07-5d61f667fea0 Denmark | |
| b271da47-9788-458a-8676-c5c0f5170f27 Germany | |
| dff6361a-8f15-4d9b-b414-a3fc676146ad Belgium | |
| 9f12ce2c-1374-4fc7-b9ae-d0f4cd2ac98f Sweden | |
| c8572bd8-4edf-4938-be87-6fbcf510533f Portugal | |
| 64f1ea60-73a1-49ca-a7df-7d1b40c2df67 France | |
| 6c611fca-da28-4be9-ac53-0df063f38f50 Poland | |
| 87e9806e-6b1d-4503-a855-1db6be3e5316 Germany | |
| 88418cfc-154b-4ce6-a85a-4130da280b02 Bulgaria | |
| 64cd7a11-cc53-4493-a151-919dbb2bccbc Hungary | |
| eda56b32-47b9-4cc6-8bca-3983a06bf325 Poland | |
| 777b5b80-a2cd-4813-8041-4cc9e35fe8f2 Netherlands | |
| 46f8bfc3-6819-4a44-af77-e92a0a142feb Czech Republic | |
| f460545a-364f-4d72-82cf-b1808ad0474a Croatia | |
| f4c979c0-f81c-442d-a22e-b52c5d7d3322 Hungary | |
| fb11fcf0-e5f9-4536-b634-fe02bb804a74 France | |
| e41dde30-0812-499f-bae6-0dc05d783629 Norway | |
| Popular Downloads | |
| Data Sheet, Technical Information | 4NWD002979_EN |
| Instructions and Manuals | 4NWD003231_EN |
| Environmental | |
| Ambient Air Temperature | Storage -15…+60 °C |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85044000 |
| E-Number (Finland) | 8408608 |
| E-Number (Norway) | 6600786 |
| Country or Territory of Origin | China |
| Dimensions | |
| Product Net Width | 438 mm |
| Product Net Height | 86.5 mm |
| Product Net Depth / Length | 573 mm |
| Product Net Weight | 15.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 586 mm |
| Package Level 1 Height | 238 mm |
| Package Level 1 Depth / Length | 766 mm |
| Package Level 1 Gross Weight | 18.9 kg |
| Package Level 1 EAN | 7640169261831 |
| Technical | |
| Apparent Power Output | 10000 V·A |
| Communication Interface | USB, RS-232 |
| Connection Type | Fixed Connection |
| Display Type | LCD |
| Input Voltage (Uin) | 208 V |
| 220 V | |
| 230 V | |
| 240 V | |
| Input Voltage Type | AC |
| Number of Outputs | C13 Connection 2 |
| Fixed Connections 1 | |
| Number of Phases | 1-phase Primary |
| 1-phase Secondary | |
| Options Provided | Auto shut down function |
| Potential free switch contact | |
| Network-management | |
| Rated Frequency (f) | Primary 50 Hz |
| Primary 60 Hz | |
| Secondary 50 Hz | |
| Secondary 60 Hz | |
| Rated Output Power | 10000 W |
| Certificates and Declarations | |
| Declaration of Conformity - CCC | No certification needed |
| Declaration of Conformity - CE | 4NWD004827 |
| External Classifications and Standards | |
| ETIM 9 | EC000382 - UPS |
| ETIM 10 | EC000382 - UPS |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| CN8 | 85044000 |
| eClass | V11.1 : 27040690 |
| Object Classification Code | G |
