View larger
Images are for illustrative purposes only. Please refer to data sheet for details

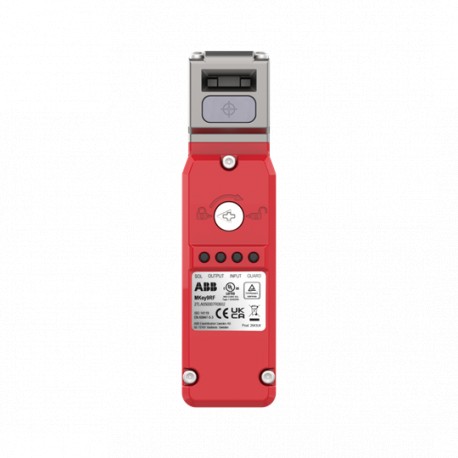

2TLA050007R0602 ABB MKey9RF without actuator, Plastic M20
2TLA050007R0602
2TLA050007R0602
ABB
1 Pcs.
MKey9RF without actuator, Plastic M20
MKey9RF Plastic M20 Safety Sensors, Switches and Locks
Automation > Position switch with guard locking
Fences and rolling doors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 8536500700 |
| Product Main Type | Mkey |
| Product Name | Safety Sensors, Switches and Locks |
| Function | Safety mechanical switch for interlocking with locking (Safety) |
| Special Functions | No key supplied; With auxiliary release; RFID |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010001C0202 |
| EPLAN Data | 9AAC170159_EPLAN |
| Installation | |
| Instructions and Manuals | 2TLC010088M0201 |
| Dimensions | |
| Product Net Depth / Length | 51 mm |
| Product Net Height | 176 mm |
| Product Net Width | 46 mm |
| Product Net Weight | 0.7 kg |
| Safety Information | |
| Performance Level (PL) | Up to e |
| Safety Integrity Level (SIL) | 1 |
| 2 | |
| 3 | |
| Technical | |
| Communication Interface | OSSD |
| Number of Contacts NC | 0 |
| Number of Contacts NO | 0 |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... 40 °C |
| Degree of Protection | IP67 |
| Material | Plastic |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2TLC010210D0201 |
| Declaration of Conformity - UKCA | 2TLC010211D0201 |
| UL Certificate | 2TLC010020D0201 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 65 mm |
| Package Level 1 Depth / Length | 220 mm |
| Package Level 1 Height | 65 mm |
| Package Level 1 Gross Weight | 0.8 kg |
| Package Level 1 EAN | 7350024486834 |
| External Classifications and Standards | |
| eClass | V11.0 : 27270611 |
| ETIM 7 | EC002593 - Position switch with guard locking |
| ETIM 8 | EC002593 - Position switch with guard locking |
| ETIM 9 | EC002593 - Position switch with guard locking |
| Object Classification Code | B |
| E-Number (Finland) | 2314989 |
| E-Number (Sweden) | 3861555 |
