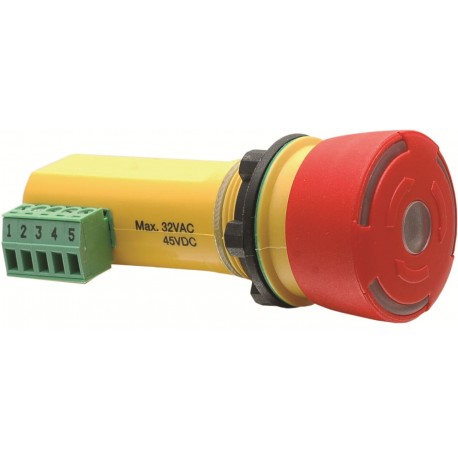

2TLA030054R0010 ABB INCA 1 Tina v2 emergency stop
2TLA030054R0010
030054
ABB
1 Pcs.
INCA 1 Tina v2 emergency stop
INCA 1 Tina v2 Emergency stop button
Automation > Emergency stop complete
Fences and rolling doors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 8536508000 |
| Product Main Type | INCA |
| Product Name | Emergency stop button |
| Function | Turn-release |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010001C0202 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Installation | |
| Instructions and Manuals | 2TLC172163M0201 |
| Mounting Type | Mounted on main unit or cabinet door |
| Dimensions | |
| Product Net Depth / Length | 75.5 mm |
| Product Net Height | 32.2 mm |
| Product Net Width | 32.2 mm |
| Product Net Weight | 0.042 kg |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Safety Information | |
| Performance Level (PL) | Up to e |
| Technical | |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Rated Operational Voltage | 24 V DC |
| Environmental | |
| Ambient Air Temperature | Operation -10 ... 55 °C |
| Degree of Protection | IP65 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CSA Certificate | 2TLC172088D0201 |
| Declaration of Conformity - CE | 2TLC172016D0201 |
| Declaration of Conformity - UKCA | 2TLC010162D0201 |
| TÜV Certificate | 2TLC172067D0401 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 136 mm |
| Package Level 1 Depth / Length | 66 mm |
| Package Level 1 Height | 42 mm |
| Package Level 1 Gross Weight | 0.076 kg |
| Package Level 1 EAN | 7350024485813 |
| External Classifications and Standards | |
| eClass | V11.0 : 27371244 |
| ETIM 7 | EC002034 - Emergency stop complete |
| ETIM 8 | EC002034 - Emergency stop complete |
| ETIM 9 | EC002034 - Emergency stop complete |
| UNSPSC | 39121545 |
| Object Classification Code | B |
| E-Number (Sweden) | 3705916 |
| Feature Name | Feature Value |
|---|---|
| Unlocking method (EF001403) | Other |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Degree of protection (IP) (EF005474) | Other |
| Degree of protection (NEMA) (EF011959) | Other |
| Mounting method (EF000003) | Surface mounting |
| With lighting (EF003829) | No |
| Connection type auxiliary circuit (EF006820) | Other |
