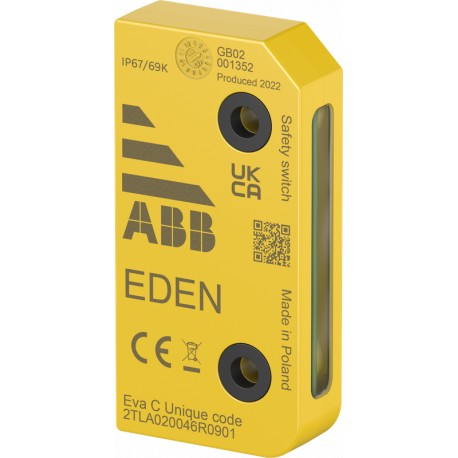

2TLA020046R0901 ABB Adam Compatible Single Code Actuator
2TLA020046R0901
2TLA020046R0901
ABB
1 Pcs.
Automation > Magnetic proximity switch
Fences and rolling doors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
2TLA020046R0901 is an Adam compatible single code actuator from ABB, engineered to operate alongside non-contact safety interlock switches. Such actuators are installed on movable machine guards to ensure high-integrity interlocking and operator protection in industrial automation setups.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 8536508000
- Product Main Type: Eden
- Product Name: Actuator
- Function: Non-contact safety sensor used as interlocking device - Actuator to be ordered separately
- Status Indicator: No
- Data Sheet, Technical Information: 2TLC010044L0201
- Marketing Video: 2TLC010018N0201
- Instructions and Manuals: 2TLC172271M0201
- Mounting Type: Not flat
- Product Net Depth / Length: 12 mm
- Product Net Height: 60 mm
- Product Net Width: 30 mm
- Product Net Weight: 0.026 kg
- Certification Agency: cCSAus
- Safety Category: 4
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 8536508000 |
| Product Main Type | Eden |
| Product Name | Actuator |
| Function | Non-contact safety sensor used as interlocking device - Actuator to be ordered separately |
| Status Indicator | No |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010044L0201 |
| Marketing Video | 2TLC010018N0201 |
| Installation | |
| Instructions and Manuals | 2TLC172271M0201 |
| Mounting Type | Not flat |
| Dimensions | |
| Product Net Depth / Length | 12 mm |
| Product Net Height | 60 mm |
| Product Net Width | 30 mm |
| Product Net Weight | 0.026 kg |
| Safety Information | |
| Certification Agency | cCSAus |
| Safety Category | 4 |
| Performance Level (PL) | Up to e |
| Safety Integrity Level (SIL) | 3 |
| Technical | |
| Operating Distance (Sn) | 15 mm |
| PCB Coated | Yes |
| Technical UL/CSA | |
| Enclosure Type UL/CSA | 4X |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 70 °C |
| Storage -40 ... +70 °C | |
| Degree of Protection | IP67 |
| IP69K | |
| Material | Housing: Plastic (PBT) |
| Coating housing: Uncoated | |
| Moulding: Epoxy | |
| Operating Humidity (RHamb) | 35 to 95% |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB EcoSolutions | |
| Environmental Product Declaration - EPD | 2TLC010222D0201 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2TLC172133D0201 |
| Declaration of Conformity - UKCA | 2TLC010159D0201 |
| TÜV Certificate | 2TLC172134D0201 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 0.03 m |
| Package Level 1 Depth / Length | 0.06 m |
| Package Level 1 Height | 0.012 m |
| Package Level 1 Gross Weight | 0.029 kg |
| Package Level 1 EAN | 7350024486582 |
| External Classifications and Standards | |
| eClass | V11.0 : 27272402 |
| ETIM 7 | EC002544 - Magnetic proximity switch |
| ETIM 8 | EC002544 - Magnetic proximity switch |
| ETIM 9 | EC002544 - Magnetic proximity switch |
| UNSPSC | 32151803 |
| Object Classification Code | B |
| E-Number (Sweden) | 3834853 |
