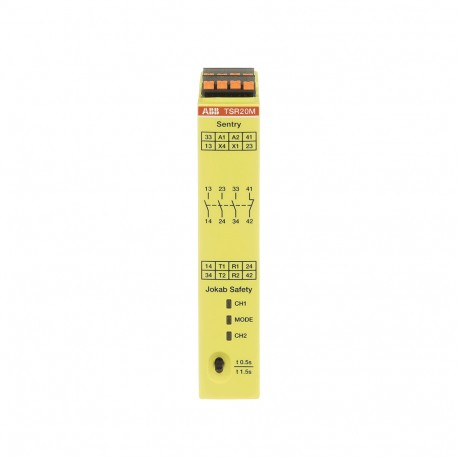

2TLA010061R0101 ABB Sentry TSR20MP Push-In Safety Relay
2TLA010061R0101
010061
ABB
1 Pcs.
Sentry TSR20MP Push-In Safety Relay
Sentry TSR20MP Safety relay
Automation > Device for monitoring of safety-related circuits
Safety Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Providing dependable signal evaluation for industrial safety peripherals, the 2TLA010061R0101 ABB Sentry TSR20MP Push-In Safety Relay monitors equipment like light curtains and emergency pushbuttons to interrupt power during unsafe events. Safety relays are foundational elements in machine control circuits, protecting personnel and capital assets. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- EAN: 7350024486339
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85364900
- Data Sheet, Technical Information: 2TLC010037L0201
- Instructions and Manuals: 2TLC010071M0201
- CAD Dimensional Drawing: 2CDC001079B0201
- Dimension Diagram: 2TLC010001U0201
- Wiring Diagram: 2TLC010015T0001
- EPLAN Data: 9AAC188683_EPLAN
- Marketing Video: 2TLC010019N0201
- Product Net Width: 22.5 mm
- Product Net Height: 120 mm
- Product Net Depth / Length: 120 mm
- Product Net Weight: 0.214 kg
- Function: Safety relay for monitoring of safety devices
- Sub-Function: Start/test input, Auto reset only, Time delay selectable by switch
More info
▲| Ordering | |
|---|---|
| EAN | 7350024486339 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010037L0201 |
| Instructions and Manuals | 2TLC010071M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimension Diagram | 2TLC010001U0201 |
| Wiring Diagram | 2TLC010015T0001 |
| EPLAN Data | 9AAC188683_EPLAN |
| Marketing Video | 2TLC010019N0201 |
| 2TLC010018N0201 | |
| Dimensions | |
| Product Net Width | 22.5 mm |
| Product Net Height | 120 mm |
| Product Net Depth / Length | 120 mm |
| Product Net Weight | 0.214 kg |
| Technical | |
| Function | Safety relay for monitoring of safety devices |
| Sub-Function | Start/test input, Auto reset only, Time delay selectable by switch |
| Timer Relay Type | OFF-Delay |
| Time Range | 1.5 seconds |
| 0.5 second | |
| Rated Control Supply Voltage (Us) | 120 ... 375 V DC |
| 85 ... 265 V AC | |
| Rated Operational Current AC-15 (Ie) | 5 A |
| Rated Operational Current DC-13 (Ie) | 6 A |
| Degree of Protection | IP20 |
| Connecting Capacity | Crimped Pin 1x0.2...2.5 mm² |
| Crimped Pin 2x0.25...1.5 mm² | |
| Flexible with Ferrule 1x0.2...2.5 mm² | |
| Flexible with Ferrule 2x0.25...1.5 mm² | |
| Solid 1x0.2...2.5 mm² | |
| Solid 2x0.25...1.5 mm² | |
| Wire Stripping Length | 6.5 mm |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Standards | IS0 13849 |
| Technical UL/CSA | |
| Connecting Capacity UL/CSA | Crimped Pin 1x 24-14 AWG |
| Flexible with Ferrule 1x 24-14 AWG | |
| Solid 1x 24-14 AWG | |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +65 °C |
| Storage -40 ... +70 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| Certificates and Declarations | |
| CQC Certificate | CQC2017010303977544 |
| cUL Certificate | 2TLC010006D0201 |
| Declaration of Conformity - CCC | 2020980303000244 |
| Declaration of Conformity - CE | 2TLC010010D0201 |
| Declaration of Conformity - UKCA | 2TLC010190D0201 |
| TÜV Certificate | 2TLC010008D0201 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 125 mm |
| Package Level 1 Depth / Length | 31 mm |
| Package Level 1 Height | 129 mm |
| Package Level 1 Gross Weight | 0.275 kg |
| Package Level 1 EAN | 7350024486339 |
| Package Level 2 Units | 36 piece |
| Package Level 2 Width | 280 mm |
| Package Level 2 Depth / Length | 395 mm |
| Package Level 2 Height | 210 mm |
| Package Level 2 Gross Weight | 10.2 kg |
| External Classifications and Standards | |
| Object Classification Code | K |
| ETIM 7 | EC001449 - Device for monitoring of safety-related circuits |
| ETIM 8 | EC001449 - Device for monitoring of safety-related circuits |
| ETIM 9 | EC001449 - Device for monitoring of safety-related circuits |
| eClass | V11.0 : 27371819 |
| UNSPSC | 39122331 |
| E-Number (Finland) | 2712905 |
| E-Number (Sweden) | 3861419 |
