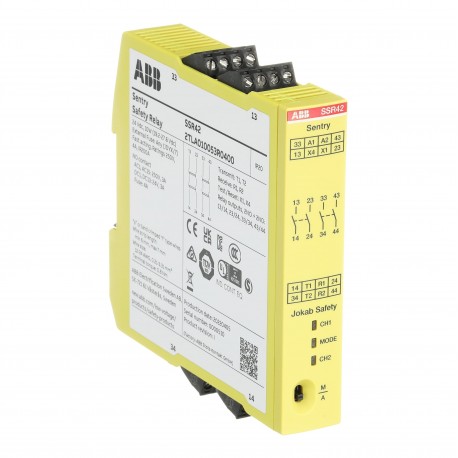

ABB 2TLA010053R0401 2TLA010053R0401 ABB Sentry SSR42P Push-In Safety Relay View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2TLA010053R0401 ABB Sentry SSR42P Push-In Safety Relay

2TLA010053R0401

010053

ABB

1 Pcs.

Sentry SSR42P Push-In Safety Relay Sentry SSR42P Safety relay

Automation > Device for monitoring of safety-related circuits
Safety Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Ordering
EAN7350024486308
Minimum Order Quantity1 piece
Customs Tariff Number85364900
Popular Downloads
Data Sheet, Technical Information2TLC010037L0201
Instructions and Manuals2TLC010068M0201
CAD Dimensional Drawing2CDC001079B0201
Dimension Diagram2TLC010001U0201
Wiring Diagram2TLC010018T0001
EPLAN Data9AAC188686_EPLAN
Marketing Video2TLC010019N0201
2TLC010018N0201
Dimensions
Product Net Width22.5 mm
Product Net Height120 mm
Product Net Depth / Length120 mm
Product Net Weight0.207 kg
Technical
FunctionSafety relay for monitoring of safety devices
Sub-FunctionStart/test input, Manual/Auto reset selectable by switch
Timer Relay TypeOFF-Delay
Time Range1.5 seconds
Rated Control Supply Voltage (Us)24 V DC
Rated Operational Current AC-15 (Ie)3 A
Rated Operational Current DC-13 (Ie)3 A
Degree of ProtectionIP20
Connecting CapacityCrimped Pin 1x0.2...2.5 mm²
Crimped Pin 2x0.25...1.5 mm²
Flexible with Ferrule 1x0.2...2.5 mm²
Flexible with Ferrule 2x0.25...1.5 mm²
Solid 1x0.2...2.5 mm²
Solid 2x0.25...1.5 mm²
Wire Stripping Length6.5 mm
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
StandardsIS0 13849
Technical UL/CSA
Connecting Capacity UL/CSACrimped Pin 1x 24-14 AWG
Flexible with Ferrule 1x 24-14 AWG
Solid 1x 24-14 AWG
Environmental
Ambient Air TemperatureOperation -25 ... +65 °C
Storage -40 ... +70 °C
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2022-006480
RoHS Declaration2CMT2022-006499
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006522
Certificates and Declarations
CQC CertificateCQC2017010303977544
cUL Certificate2TLC010006D0201
Declaration of Conformity - CCC2020980303000244
Declaration of Conformity - CE2TLC010010D0201
Declaration of Conformity - UKCA2TLC010190D0201
TÜV Certificate2TLC010008D0201
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width125 mm
Package Level 1 Depth / Length31 mm
Package Level 1 Height129 mm
Package Level 1 Gross Weight0.268 kg
Package Level 1 EAN7350024486308
Package Level 2 Units36 piece
Package Level 2 Width280 mm
Package Level 2 Depth / Length395 mm
Package Level 2 Height210 mm
Package Level 2 Gross Weight9.9 kg
External Classifications and Standards
Object Classification CodeK
ETIM 7EC001449 - Device for monitoring of safety-related circuits
ETIM 8EC001449 - Device for monitoring of safety-related circuits
ETIM 9EC001449 - Device for monitoring of safety-related circuits
eClassV11.0 : 27371819
UNSPSC39122331
E-Number (Finland)2712902
E-Number (Sweden)3861413

ETIM for 2TLA010053R0401 Relays (EC001449)
Feature Name Feature Value
Model (EF000010) Other
Suitable for monitoring of position switches (EF007270) Yes
Suitable for monitoring of emergency-stop circuits (EF007268) Yes
Suitable for monitoring of valves (EF007272) Yes
Suitable for monitoring of optoelectronic protection equipment (EF007269) Yes
Suitable for monitoring of tactile sensors (EF007271) No
Suitable for monitoring of magnetic switches (EF007266) Yes
Suitable for monitoring of proximity switches (EF007267) Yes
Type of electric connection (EF003961) Plug-in connection
Suitable for rail mounting (EF003972) Yes
With detachable clamps (EF003340) Yes
Evaluation inputs (EF008245) One- and two-channel
With start input (EF003342) Yes
With muting function (EF004057) No
With feedback circuit (EF003343) Yes
Release-delay (EF001129) 20 s
Number of outputs, safety related, undelayed, with contact (EF003344) 2
Number of outputs, safety related, delayed, with contact (EF003345) 2
Number of outputs, safety related, undelayed, semiconductors (EF003346) 0
Number of outputs, safety related, delayed, semiconductors (EF003347) 0
Number of outputs, signalling function, undelayed, with contact (EF003348) 0
Number of outputs, signalling function, delayed, with contact (EF003349) 0
Number of outputs, signalling function, undelayed, semiconductors (EF003350) 0
Number of outputs, signalling function, delayed, semiconductors (EF003351) 0
Type of safety according to IEC 61496-1 (EF004105) 4
Stop category according to IEC 60204 (EF007498) 0 + 1
Performance level according to EN ISO 13849-1 (EF007399) Level e
SIL according to IEC 61508 (EF009889) 3
With approval for BG BIA (EF004145) No
With approval according to UL (EF001783) Yes
Width (EF000008) 22.5 mm
Height (EF000040) 120 mm
Depth (EF000049) 120 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
