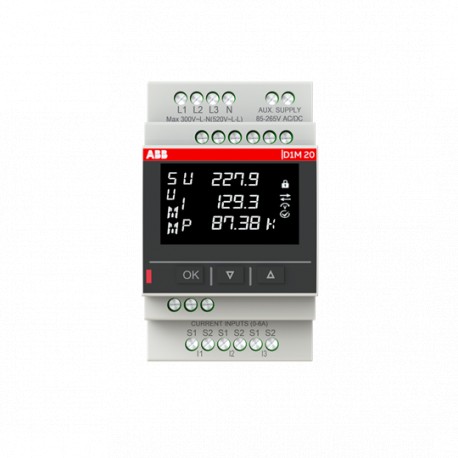

2TAZ665052R2001 ABB D1M20 Modbus Network Analyzer
2TAZ665052R2001
2TAZ665052R2001
ABB
1 Pcs.
Automation > Multimeter
AER and Transformers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 2TAZ665052R2001 ABB D1M20 Modbus Network Analyzer is an advanced electrical measurement device used to monitor, record, and analyze power quality and electrical parameters within commercial and industrial power distribution systems. Network analyzers provide facility operators with real-time visibility into voltage, current, power consumption, and harmonic distortion to help optimize energy usage and prevent equipment failures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Accuracy: Active Energy ±0.5%
- Measuring Range: Maximum Voltage AC 300 V
- Number of Phases: 1-phase
- Number of Digital In/Outputs: 2 Digital Inputs, 2 Digital Outputs
- Type of Indicator: Analogue/digital
- Communication: Modbus RTU
- Number of Batteries: 0
- Current Type: Mains
- Rated Voltage (U r ): 80-300 (L-N) V AC
- Rated Current (I n ): 1 A
- Frequency ( f ): 50 … 60 Hz
- Power Consumption (@P cons ): Maximum 5 V·A
- RoHS Declaration: 9AKK108468A9969
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20231102
- REACH Declaration: 9AKK108470A6350
More info
▲| Technical | |
|---|---|
| Accuracy | Active Energy ±0.5% |
| Measuring Range | Maximum Voltage AC 300 V |
| Maximum Current AC 6 A | |
| Maximum Frequency 60 kHz | |
| Number of Phases | 1-phase |
| 3-phase | |
| Number of Digital In/Outputs | 2 Digital Inputs, 2 Digital Outputs |
| Type of Indicator | Analogue/digital |
| Communication | Modbus RTU |
| Number of Batteries | 0 |
| Electrical | |
| Current Type | Mains |
| Rated Voltage (Ur) | 80-300 (L-N) V AC |
| Rated Current (In) | 1 A |
| 5 A | |
| Frequency (f) | 50 … 60 Hz |
| Power Consumption (@Pcons) | Maximum 5 V·A |
| Material Compliance | |
| RoHS Declaration | 9AKK108468A9969 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20231102 |
| REACH Declaration | 9AKK108470A6350 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20231122 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... 55 °C |
| Storage -25 ... 70 °C | |
| Degree of Protection | IP51 |
| Pollution Degree | 2 |
| Dimensions | |
| Product Net Width | 52.5 mm |
| Product Net Height | 89 mm |
| Product Net Depth / Length | 63.5 mm |
| Product Net Weight | 0.252 kg |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.26 kg |
| E-Number (Finland) | 6719070 |
| E-Number (Norway) | 8002576 |
| Certificates and Declarations | |
| EU Data Act Compliance Declaration | 9AKK108471A5104 |
| Installation | |
| Instructions and Manuals | 9AKK108468A5639 |
| Mounting Type | DIN-Rail |
| External Classifications and Standards | |
| ETIM 9 | EC000069 - Multimeter |
| ETIM 10 | EC000069 - Multimeter |
| Standards | IEC 61557-12 |
| IEC 62053-22 | |
