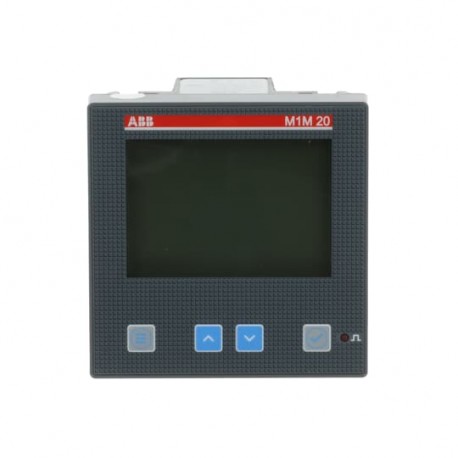

2TAZ662010R2000 ABB M1M 20 Network Analyzer
2TAZ662010R2000
2TAZ662010R2000
ABB
1 Pcs.
Automation > Kilowatt-hour meter
AER and Transformers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for front-panel mounting, the 2TAZ662010R2000 ABB M1M 20 Network Analyzer functions as a digital measuring instrument that delivers clear visibility into electrical grid parameters. Technicians deploy these panel meters in electrical switchboards to continuously display voltage, current, and power metrics for operational supervision. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Environmental Product Declaration - EPD: 9AKK108468A7154
- Accuracy: Active Energy ±1%
- Meter Type: Digital
- Additional Information: CT (1A, 5A)
- RoHS Declaration: 9AKK107991A5125
- RoHS Information: Following EU Directive 2011/65/EU
- RoHS Date: 20201109
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B: Business To Business
- Degree of Protection: IP51
- Product Net Width: 96 mm
- Product Net Height: 96 mm
- Product Net Depth / Length: 77 mm
- Product Net Weight: 0.315 kg
- EPLAN Data: 9AAC189718_EPLAN
More info
▲| ABB EcoSolutions | |
|---|---|
| Environmental Product Declaration - EPD | 9AKK108468A7154 |
| Technical | |
| Accuracy | Active Energy ±1% |
| Number of Digital In/Outputs | None |
| Meter Type | Digital |
| Additional Information | CT (1A, 5A) |
| Communication | None |
| Material Compliance | |
| RoHS Declaration | 9AKK107991A5125 |
| RoHS Information | Following EU Directive 2011/65/EU |
| RoHS Date | 20201109 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Degree of Protection | IP51 |
| Dimensions | |
| Product Net Width | 96 mm |
| Product Net Height | 96 mm |
| Product Net Depth / Length | 77 mm |
| Product Net Weight | 0.315 kg |
| Engineering | |
| EPLAN Data | 9AAC189718_EPLAN |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.50 kg |
| E-Number (Finland) | 6719007 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK107991A5125 |
| Installation | |
| Instructions and Manuals | 2CSG445080D1001 |
| Mounting Type | Front Panel |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107991A1877 |
| External Classifications and Standards | |
| ETIM 9 | EC001506 - Kilowatt-hour meter |
| ETIM 10 | EC001506 - Electricity meter |
| eClass | V11.0 : 27142316 |
| Object Classification Code | P |
