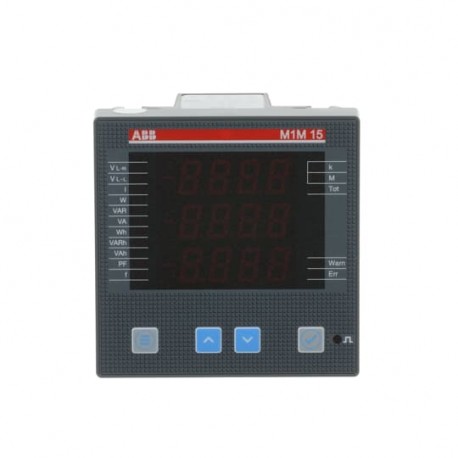

2TAZ661010R2000 ABB M1M 15 Digital Multimeter
2TAZ661010R2000
2TAZ661010R2000
ABB
1 Pcs.
Automation > Kilowatt-hour meter
AER and Transformers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
2TAZ661010R2000 Abb digital multimeter measures critical electrical parameters in switchgear and control panel installations. These instruments help operators track voltage, current, and active energy values to maintain safe and efficient electrical distribution.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Environmental Product Declaration - EPD: 9AKK108468A7155
- Accuracy: Active Energy ±1%
- Meter Type: Digital
- Additional Information: CT (1A, 5A)
- Communication: Modbus RTU
- RoHS Declaration: 9AKK107991A5125
- RoHS Information: Following EU Directive 2011/65/EU
- RoHS Date: 20201109
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B: Business To Business
- Degree of Protection: IP51
- Product Net Width: 96 mm
- Product Net Height: 96 mm
- Product Net Depth / Length: 77 mm
- Product Net Weight: 0.310 kg
More info
▲| ABB EcoSolutions | |
|---|---|
| Environmental Product Declaration - EPD | 9AKK108468A7155 |
| Technical | |
| Accuracy | Active Energy ±1% |
| Number of Digital In/Outputs | None |
| Meter Type | Digital |
| Additional Information | CT (1A, 5A) |
| Communication | Modbus RTU |
| Material Compliance | |
| RoHS Declaration | 9AKK107991A5125 |
| RoHS Information | Following EU Directive 2011/65/EU |
| RoHS Date | 20201109 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Degree of Protection | IP51 |
| Dimensions | |
| Product Net Width | 96 mm |
| Product Net Height | 96 mm |
| Product Net Depth / Length | 77 mm |
| Product Net Weight | 0.310 kg |
| Engineering | |
| EPLAN Data | 9AAC189718_EPLAN |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.50 kg |
| E-Number (Finland) | 6719005 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK107991A5125 |
| Installation | |
| Instructions and Manuals | 2CSG445070D1001 |
| Mounting Type | Front Panel |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107991A1877 |
| External Classifications and Standards | |
| ETIM 9 | EC001506 - Kilowatt-hour meter |
| ETIM 10 | EC001506 - Electricity meter |
| eClass | V11.0 : 27142316 |
| Object Classification Code | P |
