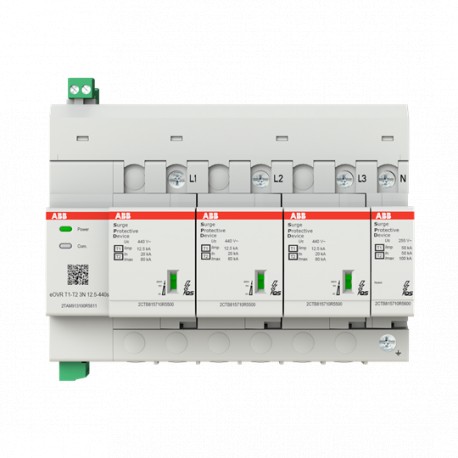

2TAM913100R5811 ABB Prot.sobret. eOVRT1T23N12.5440s
2TAM913100R5811
2TAM913100R5811
ABB
1 Pcs.
Prot.sobret. eOVRT1T23N12.5440s
eOVR T1-T2 3N 12.5-440s Digital SPD for energy management via Modbus RTU SPD T1+2, 400/690V TT/TNS system
Automation > Surge protection device for power supply systems
Other modular devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 2TAM913100R5811 ABB Prot.sobret. eOVRT1T23N12.5440s from Abb is an advanced surge protection device utilized in industrial automation and power distribution environments to prevent transient voltage damage. These protective components absorb and divert high-energy electrical spikes, ensuring continuous, reliable operation of connected plant equipment.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 45.1 %
- ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill
- Improved Energy Efficiency for Customers: Process Efficiency - Product improves/optimizes process
- Extended Product Lifetime: Product Durability
- End Of Life Disassembling Instructions: 9AKK108470A3994
- Environmental Product Declaration - EPD: 9AKK108470A1870
- Type of Low Voltage Distribution System: TT
- Suitable For: To protect the systems against the transient overvoltage (lightning)
- Nominal AC Voltage of the System (U o ): 400 /600 V
- Maximum Continuous Operating Voltage (U c ): (L-PE) 440 V
- Temporary Overvoltage Test Value (U T ): (L-N) 337 V
- Rated Service Short-Circuit Breaking Capacity (I cs ): 100 kA
- Discharge Current: Nominal 20 kA
- Impulse Current: I (imp, 10 / 350 µs) 12.5 kA
- Lightning Impulse Current: 12.5 kA
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 45.1 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Improved Energy Efficiency for Customers | Process Efficiency - Product improves/optimizes process |
| Process Efficiency - Product contribute to making customer’s operations more resilient and reliable | |
| Extended Product Lifetime | Product Durability |
| Product Modularity | |
| End Of Life Disassembling Instructions | 9AKK108470A3994 |
| Environmental Product Declaration - EPD | 9AKK108470A1870 |
| Technical | |
| Type of Low Voltage Distribution System | TT |
| TN-S | |
| Suitable For | To protect the systems against the transient overvoltage (lightning) |
| Nominal AC Voltage of the System (Uo) | 400 /600 V |
| Maximum Continuous Operating Voltage (Uc) | (L-PE) 440 V |
| Temporary Overvoltage Test Value (UT) | (L-N) 337 V |
| (N-PE) 1200 V | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 100 kA |
| Discharge Current | Nominal 20 kA |
| Maximum 80 kA | |
| Impulse Current | I (imp, 10 / 350 µs) 12.5 kA |
| Lightning Impulse Current | 12.5 kA |
| Short Circuit Withstand Icc | 100 kA |
| Arrester Class | I |
| II | |
| Number of Protected Poles | 4 |
| Number of Poles | 3P+N |
| Position of Neutral Terminals | Right |
| Transmission Standard | Optic |
| Version | Plug-in |
| Product Type | QS |
| Options Provided | Monitoring : Surge event counter SPD end of life prediction Upstream back up status SPD status Ambient temperature Nominal voltage Surge amplitude Surge time Alarm : Front face blinking LED Leakage current Overvoltage Undervoltage Upstream back up status MOV end of life treshold SPD status |
| Preventive Maintenance Feature | No |
| Status Indicator | Yes |
| Fuse Size | 4 modular spacing |
| Electrical | |
| Rated Voltage (Ur) | 400 V AC |
| Voltage Protection Level ( Up) | (N-PE) 1.9 kV |
| (L-N) 1.9 kV | |
| Material Compliance | |
| RoHS Declaration | 9AKK108466A8539 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20220927 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP20 |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Dimensions | |
| Width in Number of Modular Spacings | 8.5 |
| Product Net Width | 151.9 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 76.7 mm |
| Product Net Weight | 1.16 kg |
| Engineering | |
| EPLAN Data | 9AAF622777_EPLAN |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 1.256 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108466A8539 |
| Installation | |
| Instructions and Manuals | 9AKK108466A7634 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Mechanical Drawings | 9AKK108466A7395 |
| 9AKK108466A7398 | |
| External Classifications and Standards | |
| ETIM 9 | EC000941 - Surge protection device for power supply systems |
| ETIM 10 | EC000941 - Surge protection device for power supply systems |
| eClass | V11.0 : 27130805 |
| Object Classification Code | 141DCC |
| Standards | IEC 61643-11 / GB/T 18802.1 / NB/T 10284 / EN 61000-6-2/EN 61000-6-3 |
