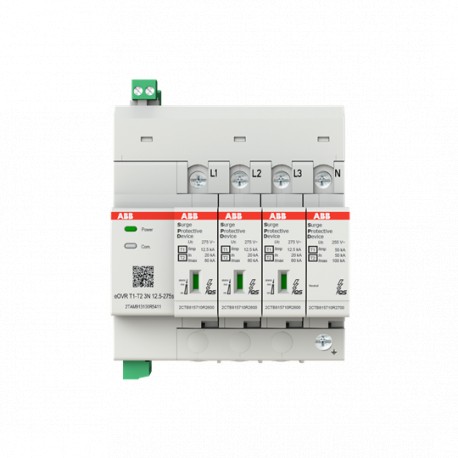

2TAM913100R5411 ABB Digital envelope prot. eOVRT1T23N12.5-275S
2TAM913100R5411
2TAM913100R5411
ABB
1 Pcs.
Automation > Surge protection device for power supply systems
Other modular devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 2TAM913100R5411 digital envelope prot. eovrt1t23n12.5-275s is an advanced hybrid surge protection device built to divert severe lightning currents and transient overvoltages in industrial networks. Such high-capacity devices are installed at primary power entry points to protect complex facility infrastructure.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 45.1 %
- ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill
- Improved Energy Efficiency for Customers: Process Efficiency - Product improves/optimizes process
- Extended Product Lifetime: Product Durability
- End Of Life Disassembling Instructions: 9AKK108470A3994
- Environmental Product Declaration - EPD: 9AKK108470A1870
- Type of Low Voltage Distribution System: TT
- Suitable For: To protect the systems against the transient overvoltage (lightning)
- Nominal AC Voltage of the System (U o ): 230 /400 V
- Maximum Continuous Operating Voltage (U c ): (L-PE) 275 V
- Temporary Overvoltage Test Value (U T ): (L-N) 337 V
- Rated Service Short-Circuit Breaking Capacity (I cs ): 100 kA
- Discharge Current: Nominal 20 kA
- Impulse Current: I (imp, 10 / 350 µs) 12.5 kA
- Lightning Impulse Current: 12.5 kA
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 45.1 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Improved Energy Efficiency for Customers | Process Efficiency - Product improves/optimizes process |
| Process Efficiency - Product contribute to making customer’s operations more resilient and reliable | |
| Extended Product Lifetime | Product Durability |
| Product Modularity | |
| End Of Life Disassembling Instructions | 9AKK108470A3994 |
| Environmental Product Declaration - EPD | 9AKK108470A1870 |
| Technical | |
| Type of Low Voltage Distribution System | TT |
| TN-S | |
| Suitable For | To protect the systems against the transient overvoltage (lightning) |
| Nominal AC Voltage of the System (Uo) | 230 /400 V |
| Maximum Continuous Operating Voltage (Uc) | (L-PE) 275 V |
| Temporary Overvoltage Test Value (UT) | (L-N) 337 V |
| (N-PE) 1200 V | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 100 kA |
| Discharge Current | Nominal 20 kA |
| Maximum 80 kA | |
| Impulse Current | I (imp, 10 / 350 µs) 12.5 kA |
| Lightning Impulse Current | 12.5 kA |
| Short Circuit Withstand Icc | 100 kA |
| Arrester Class | I |
| II | |
| Number of Protected Poles | 4 |
| Number of Poles | 3P+N |
| Position of Neutral Terminals | Right |
| Transmission Standard | Optic |
| Version | Plug-in |
| Product Type | QS |
| Options Provided | Monitoring : Surge event counter SPD end of life prediction Upstream back up status SPD status Ambient temperature Nominal voltage Surge amplitude Surge time Alarm : Front face blinking LED Leakage current Overvoltage Undervoltage Upstream back up status MOV end of life treshold SPD status |
| Preventive Maintenance Feature | No |
| Status Indicator | Yes |
| Fuse Size | 4 modular spacing |
| Electrical | |
| Rated Voltage (Ur) | 230 V AC |
| Voltage Protection Level ( Up) | (N-PE) 1.1 kV |
| (L-N) 1.2 kV | |
| Material Compliance | |
| RoHS Declaration | 9AKK108466A8539 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20220927 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP20 |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Dimensions | |
| Width in Number of Modular Spacings | 5.5 |
| Product Net Width | 83.6 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 76.3 mm |
| Product Net Weight | 0.865 kg |
| Engineering | |
| EPLAN Data | 9AAF622777_EPLAN |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.950 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108466A8539 |
| Installation | |
| Instructions and Manuals | 9AKK108466A7634 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Mechanical Drawings | 9AKK108466A7395 |
| 9AKK108466A7396 | |
| External Classifications and Standards | |
| ETIM 9 | EC000941 - Surge protection device for power supply systems |
| ETIM 10 | EC000941 - Surge protection device for power supply systems |
| eClass | V11.0 : 27130805 |
| Object Classification Code | 141DCC |
| Standards | IEC 61643-11 / GB/T 18802.1 / NB/T 10284 / EN 61000-6-2/EN 61000-6-3 |
