View larger
Images are for illustrative purposes only. Please refer to data sheet for details

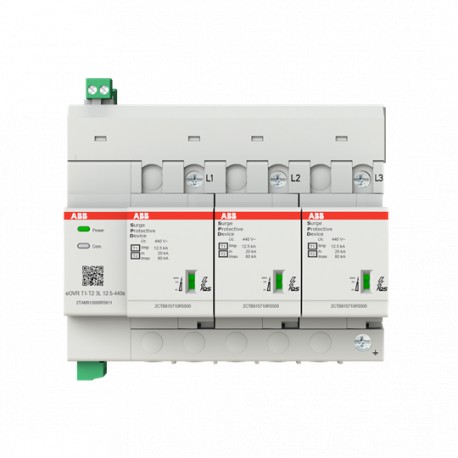

2TAM913000R5811 ABB Prot.sobret. eOVRT1T23L12.5440s
2TAM913000R5811
2TAM913000R5811
ABB
1 Pcs.
Prot.sobret. eOVRT1T23L12.5440s
eOVR T1-T2 3L 12.5-440s Digital SPD for energy management via Modbus RTU SPD T1+2, 400/690V TNC system
Automation > Surge protection device for power supply systems
Other modular devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 45.1 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Improved Energy Efficiency for Customers | Process Efficiency - Product improves/optimizes process |
| Process Efficiency - Product contribute to making customer’s operations more resilient and reliable | |
| Extended Product Lifetime | Product Durability |
| Product Modularity | |
| End Of Life Disassembling Instructions | 9AKK108470A3994 |
| Environmental Product Declaration - EPD | 9AKK108470A1870 |
| Technical | |
| Type of Low Voltage Distribution System | TN-C |
| IT | |
| Suitable For | To protect the systems against the transient overvoltage (lightning) |
| Nominal AC Voltage of the System (Uo) | 400 /600 V |
| Maximum Continuous Operating Voltage (Uc) | (L-PE) 440 V |
| Temporary Overvoltage Test Value (UT) | (L-N) 337 V |
| (N-PE) 1200 V | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 100 kA |
| Discharge Current | Nominal 20 kA |
| Maximum 80 kA | |
| Impulse Current | I (imp, 10 / 350 µs) 12.5 kA |
| I (total, 10 / 350 µs) 37.5 kA | |
| Lightning Impulse Current | 12.5 kA |
| Short Circuit Withstand Icc | 100 kA |
| Arrester Class | I |
| II | |
| Number of Protected Poles | 3 |
| Number of Poles | 3P |
| Position of Neutral Terminals | Right |
| Transmission Standard | Optic |
| Version | Plug-in |
| Product Type | QS |
| Options Provided | Monitoring : Surge event counter SPD end of life prediction Upstream back up status SPD status Ambient temperature Nominal voltage Surge amplitude Surge time Alarm : Front face blinking LED Leakage current Overvoltage Undervoltage Upstream back up status MOV end of life treshold SPD status |
| Preventive Maintenance Feature | No |
| Status Indicator | Yes |
| Fuse Size | 3 modular spacing |
| Electrical | |
| Rated Voltage (Ur) | 400 V AC |
| Voltage Protection Level ( Up) | (L-PE) 2 kV |
| (N-PE) - kV | |
| (L-N) - kV | |
| Material Compliance | |
| RoHS Declaration | 9AKK108466A8539 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20220927 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP20 |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Dimensions | |
| Width in Number of Modular Spacings | 7.5 |
| Product Net Width | 151.9 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 76.7 mm |
| Product Net Weight | 1.052 kg |
| Engineering | |
| EPLAN Data | 9AAF622777_EPLAN |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 1.148 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108466A8539 |
| Installation | |
| Instructions and Manuals | 9AKK108466A7634 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Mechanical Drawings | 9AKK108466A7395 |
| 9AKK108466A7397 | |
| External Classifications and Standards | |
| ETIM 9 | EC000941 - Surge protection device for power supply systems |
| ETIM 10 | EC000941 - Surge protection device for power supply systems |
| eClass | V11.0 : 27130805 |
| Object Classification Code | 141DCC |
| Standards | IEC 61643-11 / GB/T 18802.1 / NB/T 10284 / EN 61000-6-2/EN 61000-6-3 |
| Feature Name | Feature Value |
|---|---|
| System configuration DC (EF009926) | No |
| System configuration IT (EF009927) | No |
| System configuration TN (EF009928) | Yes |
| System configuration TN-C (EF009929) | Yes |
| System configuration TN-C-S (EF009933) | No |
| System configuration TN-S (EF009930) | Yes |
| System configuration TT (EF009931) | Yes |
| System configuration other (EF009932) | No |
| Number of conductors (without earthing) (EF001148) | 3 |
| Nominal discharge surge current (8/20) (EF004214) | 20 kA |
| Max. discharge surge current (8/20) (EF012274) | 80 kA |
| Nominal voltage AC (EF004220) | 400 V |
| Max. continuous voltage AC (EF004198) | 440 V |
| Max. overcurrent protection device, parallel connection (fuse) (EF015962) | 160 A |
| Short-circuit breaking capacity (Isccr) (EF012627) | 100 kA |
| Integrated backup fuse (EF008797) | No |
| Leakage-current free (EF016002) | No |
| Mounting method (EF000003) | Other |
| Construction size (EF002566) | 3 modular spacing |
| Max. conductor cross section solid (solid, stranded) (EF008827) | 25 mm² |
| Max. conductor cross section flexible (fine-strand) (EF008828) | 25 mm² |
| With remote signalling contact (EF000422) | No |
| Signalling at the device (EF004241) | Optic |
| Category type 2 (EF004230) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
