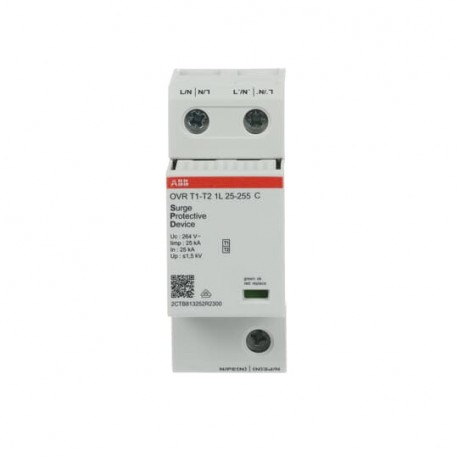

Prot.sobret. OVRT1-T21L25-255P OVR T1-T2 1L 25-255 P Surge Protective Device

Automation > Combined arrester for power supply systems
Other modular devices

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The ABB 2CTB813250R2300 Class I surge protection device is engineered to handle extreme lightning currents in heavy electrical distribution networks. Positioned at the primary service entrance, this robust module protects downstream industrial equipment from high-energy transient spikes.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of Low Voltage Distribution System: TT
  • Nominal AC Voltage of the System (U o ): 231 … 400 V
  • Maximum Continuous Operating Voltage (U c ): (L-PE) 264 V
  • Temporary Overvoltage Test Value (U T ): (L-N) 440/120min V
  • Rated Service Short-Circuit Breaking Capacity (I cs ): 100 kA
  • Discharge Current: Nominal (8 / 20 µs): 25 kA
  • Impulse Current: I (imp, 10 / 350 µs): 25 kA
  • Short Circuit Withstand Icc: 100 kA
  • Follow Current Extinction Capacity If (I fi): (L-N) 50 kA
  • Short-Circuit Protective Devices: gG Type Fuses 315 A
  • Arrester Class: I
  • Number of Protected Poles: 1
  • Number of Poles: 1P
  • Number of Conductors: 2
  • Version: Plug-in
  • Status Indicator: No

More info

▲
Technical
Type of Low Voltage Distribution SystemTT
TN-S
TN-C
Nominal AC Voltage of the System (Uo)231 … 400 V
Maximum Continuous Operating Voltage (Uc)(L-PE) 264 V
(L-N) 264 V
(N-PE) 264 V
Temporary Overvoltage Test Value (UT)(L-N) 440/120min V
Rated Service Short-Circuit Breaking Capacity (Ics)100 kA
Discharge CurrentNominal (8 / 20 µs) 25 kA
I (max, 8 / 20 µs) 60 kA
I (total, 10 / 350 µs) 25 kA
Impulse CurrentI (imp, 10 / 350 µs) 25 kA
I (total, 10 / 350 µs) 25 kA
Short Circuit Withstand Icc100 kA
Follow Current Extinction Capacity If (I fi)(L-N) 50 kA
Short-Circuit Protective DevicesgG Type Fuses 315 A
Arrester ClassI
II
Number of Protected Poles1
Number of Poles1P
Number of Conductors2
VersionPlug-in
Status IndicatorNo
Number of Batteries0
Electrical
Voltage Protection Level ( Up)(L-N) 1.5 kV
(N-PE) 1.5 kV
(L-PE) - kV
Frequency (f)45…65 Hz
Technical UL/CSA
Maximum Continuous Operating Voltage UL/CSA (MCOV)(L-PE) 255 V
(L-L) - V
(L-N) 255 V
(N-PE) 255 V
Voltage Protection Rating UL/CSA (VPR)Lpe 1500 V
Ll - V
Ln - V
Npe 1500 V
Type of Low Voltage Distribution System UL/CSASingle Phase
Material Compliance
RoHS Declaration9AKK108467A9302
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20230322
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
SCIP32e23503-46bb-43e9-a2a2-ed26b7ee4a00 Germany
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Environmental
Ambient Air TemperatureOperation -40 ... +70 °C
Storage -40 ... +80 °C
Maximum Operating Altitude PermissibleWithout Derating 2000 m
Dimensions
Width in Number of Modular Spacings2
Product Net Width36 mm
Product Net Height90 mm
Product Net Depth / Length73 mm
Product Net Weight0.300 kg
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight0.34 kg
E-Number (Norway)1629988
Certificates and Declarations
Declaration9AKK108467A9390
Declaration of Conformity - CE9AKK108467A9302
UL Certificate9AKK108468A0504
Installation
Instructions and Manuals9AKK108467A6680
9AKK108467A8846
Mounting TypeDIN-Rail
Popular Downloads
Data Sheet, Technical Information9AKK108467A6299
Mechanical Drawings9AKK108467A9586
9AKK108467A9029
External Classifications and Standards
ETIM 9EC001457 - Combined arrester for power supply systems
ETIM 10EC001457 - Combined arrester for power supply systems
UNSPSC39-12-16-01
eClassV11.0 : 27130808
StandardsIEC 61643-11
EN 61643-11
UL 1449 5thEd

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
