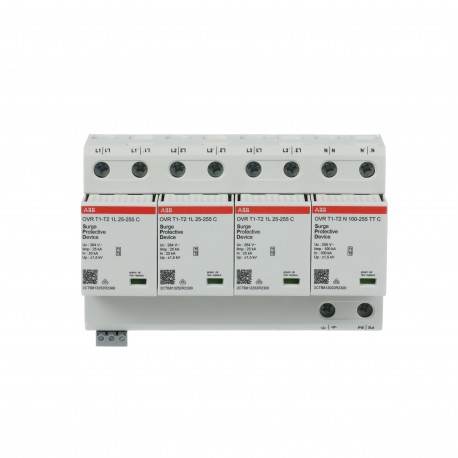

2CTB812111R2300 ABB Prot.sobret. OVRT1-T23N100-255PTS
2CTB812111R2300
2CTB812111R2300
ABB
1 Pcs.
Automation > Combined arrester for power supply systems
Other modular devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 2CTB812111R2300 ABB Prot.sobret. OVRT1-T23N100-255PTS functions as a surge protective device designed to intercept and divert transient overvoltages away from sensitive electrical assets. These modular devices are commonly placed in heavy industrial power distribution architectures to ensure uninterrupted operations during electrical anomalies. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of Low Voltage Distribution System: TT
- Nominal AC Voltage of the System (U o ): 236 … 400 V
- Maximum Continuous Operating Voltage (U c ): (L-PE) 264 V
- Temporary Overvoltage Test Value (U T ): (L-N) 440/120min V
- Rated Service Short-Circuit Breaking Capacity (I cs ): 100 kA
- Discharge Current: Nominal (8 / 20 µs): 25 kA
- Impulse Current: I (imp, 10 / 350 µs): 25 kA
- Short Circuit Withstand Icc: 100 kA
- Follow Current Extinction Capacity If (I fi): (L-N) 50 kA
- Short-Circuit Protective Devices: gG Type Fuses 315 A
- Arrester Class: I
- Number of Protected Poles: 4
- Number of Auxiliary Contacts NC: 1
- Number of Auxiliary Contacts NO: 1
- Number of Poles: 4P
- Number of Conductors: 5
More info
▲| Technical | |
|---|---|
| Type of Low Voltage Distribution System | TT |
| TN-S | |
| Nominal AC Voltage of the System (Uo) | 236 … 400 V |
| Maximum Continuous Operating Voltage (Uc) | (L-PE) 264 V |
| (L-N) 264 V | |
| (N-PE) 255 V | |
| Temporary Overvoltage Test Value (UT) | (L-N) 440/120min V |
| (N-PE) 1200/200ms V | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 100 kA |
| Discharge Current | Nominal (8 / 20 µs) 25 kA |
| I (max, 8 / 20 µs) 60 kA | |
| I (total, 10 / 350 µs) 100 kA | |
| Impulse Current | I (imp, 10 / 350 µs) 25 kA |
| I (total, 10 / 350 µs) 100 kA | |
| Short Circuit Withstand Icc | 100 kA |
| Follow Current Extinction Capacity If (I fi) | (L-N) 50 kA |
| (N-PE) 50 kA | |
| Short-Circuit Protective Devices | gG Type Fuses 315 A |
| Arrester Class | I |
| II | |
| Number of Protected Poles | 4 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Poles | 4P |
| Number of Conductors | 5 |
| Version | Plug-in |
| Auxiliary Circuit Load | Minimum 75Vdc - 500mA |
| Maximum 250Vac - 500mA | |
| Status Indicator | Yes |
| Number of Batteries | 0 |
| Cross-Section (Across) | Maximum Conductor Solid-Stranded 50 mm² |
| Maximum Conductor Flexible 35 mm² | |
| Electrical | |
| Voltage Protection Level ( Up) | (L-N) 1.5 kV |
| (N-PE) 1.5 kV | |
| (L-PE) 1.5 kV | |
| Frequency (f) | 45…65 Hz |
| Technical UL/CSA | |
| Maximum Continuous Operating Voltage UL/CSA (MCOV) | (L-PE) 255 V |
| (L-L) 510 V | |
| (L-N) 255 V | |
| (N-PE) 255 V | |
| Voltage Protection Rating UL/CSA (VPR) | Lpe 4000 V |
| Ll 2500 V | |
| Ln 1500 V | |
| Npe 3000 V | |
| Type of Low Voltage Distribution System UL/CSA | Wye |
| Material Compliance | |
| RoHS Declaration | 9AKK108467A9302 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20230322 |
| REACH Declaration | 9AKK107492A1906 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20231212 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 3011d554-48f7-4f86-8cdb-df7f9143fd70 Germany |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... +70 °C |
| Storage -40 ... +80 °C | |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Dimensions | |
| Width in Number of Modular Spacings | 8 |
| Product Net Width | 144 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 73 mm |
| Product Net Weight | 1.2 kg |
| Dimension Diagram | 9AKK108467A9590 |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 1.36 kg |
| E-Number (Finland) | 3217683 |
| E-Number (Norway) | 1629991 |
| Certificates and Declarations | |
| Declaration | 9AKK108467A9390 |
| Declaration of Conformity - CE | 9AKK108467A9302 |
| KEMA Certificate | 9AKK108468A0509 |
| UL Certificate | 9AKK108468A0504 |
| VDE Certificate | 9AKK108468A0510 |
| Installation | |
| Instructions and Manuals | 9AKK108467A8849 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK108467A5402 |
| Mechanical Drawings | 9AKK108467A9590 |
| 9AKK108467A8888 | |
| 9AKK108467A8887 | |
| 9AKK108467A8886 | |
| 9AKK108467A8870 | |
| 9AKK108467A8869 | |
| External Classifications and Standards | |
| ETIM 9 | EC001457 - Combined arrester for power supply systems |
| ETIM 10 | EC001457 - Combined arrester for power supply systems |
| UNSPSC | 39-12-16-04 |
| Standards | IEC 61643-11 |
| EN 61643-11 | |
| UL 1449 5thEd | |
