> ABB > Other modular devices > 2CTB812051R1500

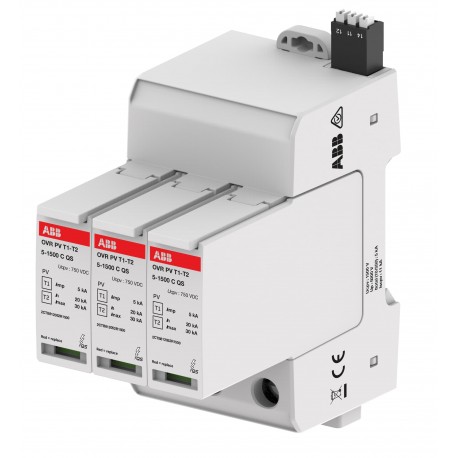

ABB 2CTB812051R1500 2CTB812051R1500 ABB Prot. About t. OVRPVT1-T25-1500PTSQS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CTB812051R1500 ABB Prot. About t. OVRPVT1-T25-1500PTSQS

2CTB812051R1500

2CTB812051R1500

ABB

1 Pcs.

Prot. About t. OVRPVT1-T25-1500PTSQS OVR PV T1-T2 5-1500 P TS QS Surge Protective Device

Automation > Surge protection device for power supply systems
Other modular devices

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Extended Product Type:
    OVR PV T1-T2 5-1500 P TS QS
  • Product ID:
    2CTB812051R1500
  • EAN:
    4053546034653
  • Catalog Description:
    OVR PV T1-T2 5-1500 P TS QS Surge Protective Device
  • Long Description:
    OVR PV T1-T2 5-1500 P TS QS Surge Protective Device

Technical

  • Standards:
    IEC 61 643-11 / EN 50539-11
  • Suitable For:
    To protect the systems against the transient overvoltage (lightning)
  • Rated Voltage (Ur):
    1500 V DC
  • Voltage Rating DC:
    1500 V
  • Voltage Protection Level ( Up):
    5 kV
  • Maximum Continuous Operating Voltage (Uc):
    (L-PE) 1500 V
    (L-L) 1500 V
    (L-N) 0 V
    (N-PE) 0 V
  • Maximum Power Point (MPP) Voltage:
    1500 V
  • Rated Service Short-Circuit Breaking Capacity (Ics):
    11 kA
  • Discharge Current:
    Nominal (8 / 20 µs) 20 kA
    I (max, 8 / 20 µs) 30 kA
    I (total, 10 / 350 µs) 5 kA
  • Impulse Current:
    I (imp, 10 / 350 µs) 5 kA
    I (total, 10 / 350 µs) 5 kA
  • Short Circuit Withstand Icc:
    11 kA
  • Arrester Class:
    I
    II
  • Number of Protected Poles:
    2
  • Number of Poles:
    3
  • Number of Conductors:
    2
  • Transmission Standard:
    Optic
  • Version:
    Plug-in
  • Mounting Type:
    DIN-Rail
  • Product Type:
    QS
  • Options Provided:
    Solar
  • Preventive Maintenance Feature:
    No
  • Status Indicator:
    Yes
  • Number of Batteries:
    0
  • Fuse Size:
    3 modular spacing

Material Compliance

  • RoHS Information:
    9AKK107991A6344
  • RoHS Status:
    Following EU Directive 2011/65/EU
  • RoHS Date:
    20210322
  • Conflict Minerals Reporting Template (CMRT):
    9AKK108468A3363

Environmental

  • Degree of Protection:
    IP20
  • Maximum Operating Altitude Permissible:
    Without Derating 4000 m

Technical UL/CSA

  • Maximum Continuous Operating Voltage UL/CSA (MCOV):
    (L-PE) 1500 V
    (L-L) 1500 V
    (L-N) 0 V
    (N-PE) 0 V
  • Voltage Protection Rating UL/CSA (VPR):
    Lpe 4 kV
    Ll 4 kV
    Ln 0 kV
    Npe 4 kV

Dimensions

  • Width in Number of Modular Spacings:
    3
  • Product Net Width:
    64mm
  • Product Net Height:
    110mm
  • Product Net Depth / Length:
    84mm
  • Product Net Weight:
    0.497kg

Ordering

  • Package Level 1 Units:
    box 1 piece
  • Package Level 1 Gross Weight:
    0.497 kg

Certificates and Declarations

Installation

Popular Downloads

Classifications

  • ETIM 8:
    EC000941 - Surge protection device for power supply systems
  • ETIM 9:
    EC000941 - Surge protection device for power supply systems
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Business
  • CN8:
    8535 40 00
  • eClass:
    V11.0 : 27130805
  • Object Classification Code:
    141DCC

ETIM for 2CTB812051R1500 Earthing, lightning and surge protection (EC000941)
Feature Name Feature Value
System configuration DC (EF009926) Yes
System configuration IT (EF009927) No
System configuration TN (EF009928) No
System configuration TN-C (EF009929) No
System configuration TN-C-S (EF009933) No
System configuration TN-S (EF009930) No
System configuration TT (EF009931) No
System configuration other (EF009932) No
Number of conductors (without earthing) (EF001148) 2
Nominal discharge surge current (8/20) (EF004214) 20 kA
Max. discharge surge current (8/20) (EF012274) 20 kA
Nominal voltage DC (EF004221) 1500 V
Max. continuous voltage AC (EF004198) 1500 V
Max. continuous voltage DC (EF004777) 1500 V
Max. PV-voltage (EF008795) 1500 V
Voltage protection level (EF003525) 5 kV
Max. overcurrent protection device, parallel connection (fuse) (EF015962) 10 A
Short-circuit breaking capacity (Isccr) (EF012627) 11 kA
Integrated short-circuit protection (EF016000) No
Integrated backup fuse (EF008797) No
Leakage-current free (EF016002) No
Mounting method (EF000003) Other
Construction size (EF002566) 3 modular spacing
Max. conductor cross section solid (solid, stranded) (EF008827) 35 mm²
Max. conductor cross section flexible (fine-strand) (EF008828) 25 mm²
With remote signalling contact (EF000422) Yes
Signalling at the device (EF004241) Optic
Category type 2 (EF004230) Yes
Degree of protection (IP) (EF005474) IP20
