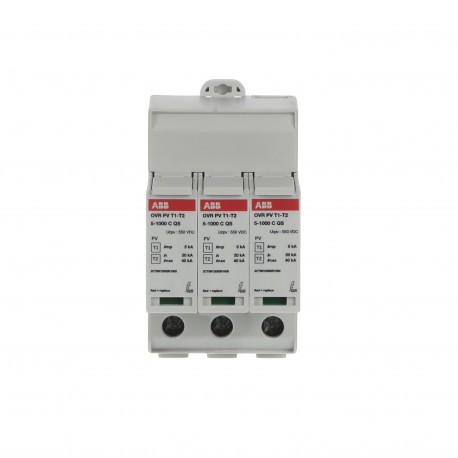

ABB 2CTB812050R1000 2CTB812050R1000 ABB Prot. About t. OVRPVT1-T25-1000PQS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CTB812050R1000 ABB Prot. About t. OVRPVT1-T25-1000PQS

2CTB812050R1000

2CTB812050R1000

ABB

1 Pcs.

Prot. About t. OVRPVT1-T25-1000PQS OVR PV T1-T2 5-1000 P QS Surge Protective Device

Automation > Surge protection device for power supply systems
Other modular devices

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Abb Prot. About t. OVRPVT1-T25-1000PQS surge protection device is specially tailored for solar applications, offering reliable defense against atmospheric overvoltages in photovoltaic setups. Photovoltaic installations rely on such robust arresters to safeguard costly DC inverters and panel arrays from severe transient surges.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable For: To protect the systems against the transient overvoltage (lightning)
  • Voltage Rating DC: 1000 V
  • Maximum Continuous Operating Voltage (U c ): (L-PE) 1100 V
  • Maximum Power Point (MPP) Voltage: 1000 V
  • Rated Service Short-Circuit Breaking Capacity (I cs ): 11 kA
  • Discharge Current: Nominal (8 / 20 µs): 20 kA
  • Impulse Current: I (imp, 10 / 350 µs): 5 kA
  • Short Circuit Withstand Icc: 11 kA
  • Arrester Class: I
  • Number of Protected Poles: 2
  • Number of Poles: 3P
  • Number of Conductors: 2
  • Transmission Standard: Optic
  • Version: Plug-in
  • Product Type: QS
  • Options Provided: Solar

More info

▲
Technical
Suitable ForTo protect the systems against the transient overvoltage (lightning)
Voltage Rating DC1000 V
Maximum Continuous Operating Voltage (Uc)(L-PE) 1100 V
(L-L) 1100 V
(L-N) 0 V
(N-PE) 0 V
Maximum Power Point (MPP) Voltage1000 V
Rated Service Short-Circuit Breaking Capacity (Ics)11 kA
Discharge CurrentNominal (8 / 20 µs) 20 kA
I (max, 8 / 20 µs) 40 kA
I (total, 10 / 350 µs) 5 kA
Impulse CurrentI (imp, 10 / 350 µs) 5 kA
I (total, 10 / 350 µs) 5 kA
Short Circuit Withstand Icc11 kA
Arrester ClassI
II
Number of Protected Poles2
Number of Poles3P
Number of Conductors2
Transmission StandardOptic
VersionPlug-in
Product TypeQS
Options ProvidedSolar
Preventive Maintenance FeatureNo
Status IndicatorYes
Number of Batteries0
Fuse Size3 modular spacing
Cross-Section (Across)Maximum Conductor Solid-Stranded 35 mm²
Maximum Conductor Flexible 25 mm²
Electrical
Rated Voltage (Ur)1000 V DC
Voltage Protection Level ( Up)3.8 kV
Technical UL/CSA
Maximum Continuous Operating Voltage UL/CSA (MCOV)(L-PE) 1100 V
(L-L) 1100 V
(L-N) 0 V
(N-PE) 0 V
Voltage Protection Rating UL/CSA (VPR)Lpe 2.5 kV
Ll 2.5 kV
Ln 0 kV
Npe 2.5 kV
Material Compliance
RoHS Declaration9AKK107991A6344
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20230707
REACH Declaration9AKK107492A1906
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20231212
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Business
Environmental
Degree of ProtectionIP20
Maximum Operating Altitude PermissibleWithout Derating 4000 m
Dimensions
Width in Number of Modular Spacings3
Product Net Width64 mm
Product Net Height96 mm
Product Net Depth / Length84 mm
Product Net Weight0.397 kg
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight0.397 kg
Certificates and Declarations
Declaration of Conformity - CE9AKK107991A6344
Installation
Instructions and Manuals2CTC431032M1701
Mounting TypeDIN-Rail
Popular Downloads
Data Sheet, Technical Information2CTC431103D0201
Mechanical Drawings2CTC812000F0100
2CTC812000F0102
2CTC812000F0103
External Classifications and Standards
ETIM 9EC000941 - Surge protection device for power supply systems
ETIM 10EC000941 - Surge protection device for power supply systems
UNSPSC39121610
eClassV11.0 : 27130805
Object Classification Code141DCC
StandardsIEC 61 643-11 / EN 50539-11
