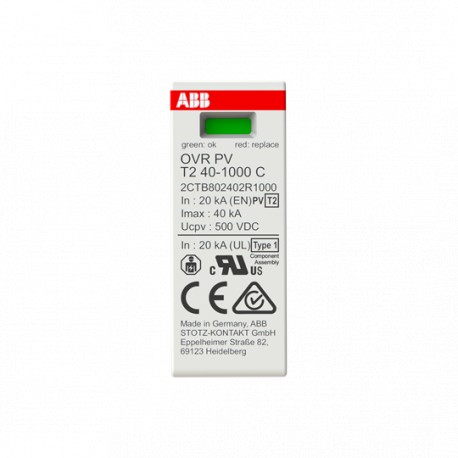

ABB 2CTB802402R1000 2CTB802402R1000 ABB OVR PV T2 40-1000 C Cartridge View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CTB802402R1000 ABB OVR PV T2 40-1000 C Cartridge

2CTB802402R1000

2CTB802402R1000

ABB

1 Pcs.

OVR PV T2 40-1000 C Cartridge OVR PV T2 40-1000 C Surge Protective Device

Automation > Surge protection device for power supply systems
Other modular devices

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical
Suitable ForTo protect the systems against the transient overvoltage (lightning)
Voltage Rating DC1000 V
Maximum Continuous Operating Voltage (Uc)(L-PE) 1000 V
(L-L) 1000 V
(L-N) 0 V
(N-PE) 0 V
Maximum Power Point (MPP) Voltage1000 V
Rated Service Short-Circuit Breaking Capacity (Ics)10 kA
Discharge CurrentNominal (8 / 20 µs) 20 kA
I (max, 8 / 20 µs) 40 kA
Short Circuit Withstand Icc10 kA
Arrester ClassII
Number of Protected Poles2
Number of Poles3P
Transmission StandardOptic
VersionPlug-in
Options ProvidedSolar
Preventive Maintenance FeatureNo
Status IndicatorYes
Fuse Size1 modular spacing
Electrical
Rated Voltage (Ur)1000 V DC
Voltage Protection Level ( Up)4 kV
Technical UL/CSA
Maximum Continuous Operating Voltage UL/CSA (MCOV)(L-PE) 1000 V
(L-L) 1000 V
(L-N) 0 V
(N-PE) 0 V
Voltage Protection Rating UL/CSA (VPR)Lpe 3 kV
Ll 3 kV
Material Compliance
RoHS Declaration9AKK108466A0826
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20230707
REACH Declaration9AKK107492A1906
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20231212
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Environmental
Degree of ProtectionIP20
Maximum Operating Altitude PermissibleWithout Derating 2000 m
Dimensions
Product Net Width17.5 mm
Product Net Height57 mm
Product Net Depth / Length47 mm
Product Net Weight0.053 kg
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight0.063 kg
Certificates and Declarations
Declaration of Conformity - CE9AKK108466A0826
UL Certificate9AKK108466A1952
Installation
Instructions and Manuals9AKK107992A4589
Mounting TypeDIN-Rail
Popular Downloads
Mechanical Drawings9AKK108466A2020
9AKK108466A5300
9AKK108466A5301
External Classifications and Standards
ETIM 9EC000941 - Surge protection device for power supply systems
ETIM 10EC000941 - Surge protection device for power supply systems
eClassV11.0 : 27130805
Object Classification Code141DCC
StandardsIEC 61643-31
UL14419 Ed5

ETIM for 2CTB802402R1000 Earthing, lightning and surge protection (EC000941)
Feature Name Feature Value
System configuration DC (EF009926) Yes
System configuration IT (EF009927) No
System configuration TN (EF009928) No
System configuration TN-C (EF009929) No
System configuration TN-C-S (EF009933) No
System configuration TN-S (EF009930) No
System configuration TT (EF009931) No
System configuration other (EF009932) No
Number of conductors (without earthing) (EF001148) 2
Nominal discharge surge current (8/20) (EF004214) 20 kA
Max. discharge surge current (8/20) (EF012274) 20 kA
Nominal voltage DC (EF004221) 1000 V
Max. continuous voltage AC (EF004198) 1000 V
Max. continuous voltage DC (EF004777) 1000 V
Max. PV-voltage (EF008795) 1000 V
Voltage protection level (EF003525) 4 kV
Short-circuit breaking capacity (Isccr) (EF012627) 10 kA
Integrated short-circuit protection (EF016000) No
Integrated backup fuse (EF008797) No
Leakage-current free (EF016002) No
Mounting method (EF000003) Other
Construction size (EF002566) 1 modular spacing
Max. conductor cross section solid (solid, stranded) (EF008827) 35 mm²
Max. conductor cross section flexible (fine-strand) (EF008828) 25 mm²
With remote signalling contact (EF000422) No
Signalling at the device (EF004241) Optic
Category type 2 (EF004230) Yes
Degree of protection (IP) (EF005474) IP20
