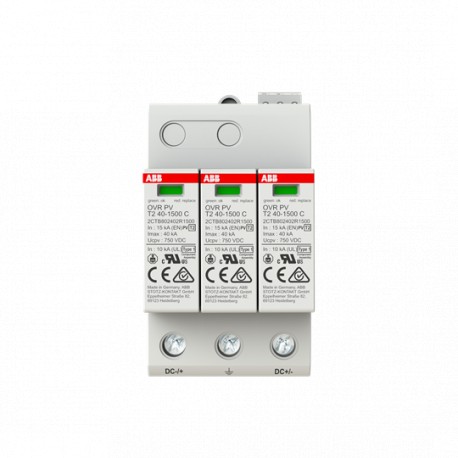

2CTB802401R1500 ABB Prot. envelope. OVR PV T2 40-1500PTS
2CTB802401R1500
2CTB802401R1500
ABB
1 Pcs.
Automation > Surge protection device for power supply systems
Other modular devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 2CTB802401R1500 prot. envelope. ovr pv t2 40-1500pts is an advanced surge protective device engineered specifically for high-voltage photovoltaic installations. Such units are integrated into solar array distribution boxes to mitigate transient overvoltages and safeguard critical power conversion hardware.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Suitable For: To protect the systems against the transient overvoltage (lightning)
- Voltage Rating DC: 1500 V
- Maximum Continuous Operating Voltage (U c ): (L-PE) 1500 V
- Maximum Power Point (MPP) Voltage: 1500 V
- Rated Service Short-Circuit Breaking Capacity (I cs ): 10 kA
- Discharge Current: Nominal (8 / 20 µs) 20 kA
- Short Circuit Withstand Icc: 10 kA
- Arrester Class: II
- Number of Protected Poles: 2
- Number of Auxiliary Contacts NO: 1
- Number of Poles: 3P
- Transmission Standard: Optic
- Version: Plug-in
- Options Provided: Solar
- Preventive Maintenance Feature: No
- Status Indicator: Yes
More info
▲| Technical | |
|---|---|
| Suitable For | To protect the systems against the transient overvoltage (lightning) |
| Voltage Rating DC | 1500 V |
| Maximum Continuous Operating Voltage (Uc) | (L-PE) 1500 V |
| (L-L) 1500 V | |
| (L-N) 0 V | |
| (N-PE) 0 V | |
| Maximum Power Point (MPP) Voltage | 1500 V |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 10 kA |
| Discharge Current | Nominal (8 / 20 µs) 20 kA |
| I (max, 8 / 20 µs) 40 kA | |
| Short Circuit Withstand Icc | 10 kA |
| Arrester Class | II |
| Number of Protected Poles | 2 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Poles | 3P |
| Transmission Standard | Optic |
| Version | Plug-in |
| Options Provided | Solar |
| Preventive Maintenance Feature | No |
| Status Indicator | Yes |
| Fuse Size | 3 modular spacing |
| Electrical | |
| Rated Voltage (Ur) | 15000 V DC |
| Voltage Protection Level ( Up) | 5 kV |
| Technical UL/CSA | |
| Maximum Continuous Operating Voltage UL/CSA (MCOV) | (L-PE) 1500 V |
| (L-L) 1500 V | |
| (L-N) 0 V | |
| (N-PE) 0 V | |
| Voltage Protection Rating UL/CSA (VPR) | Lpe 4 kV |
| Ll 4 kV | |
| Material Compliance | |
| RoHS Declaration | 9AKK108466A0826 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20230707 |
| REACH Declaration | 9AKK107492A1906 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20231212 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 3d1123d6-0763-4896-ae33-c28d41ce08c2 Germany |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP20 |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Dimensions | |
| Product Net Width | 54 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 66 mm |
| Product Net Weight | 0.329 kg |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.406 kg |
| E-Number (Norway) | 1682469 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108466A0826 |
| UL Certificate | 9AKK108466A1952 |
| Installation | |
| Instructions and Manuals | 9AKK107992A4589 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107992A4593 |
| Mechanical Drawings | 9AKK108466A2018 |
| 9AKK108466A5300 | |
| 9AKK108466A5301 | |
| External Classifications and Standards | |
| ETIM 9 | EC000941 - Surge protection device for power supply systems |
| ETIM 10 | EC000941 - Surge protection device for power supply systems |
| eClass | V11.0 : 27130805 |
| Object Classification Code | 141DCC |
| Standards | IEC 61643-31 |
| UL14419 Ed5 | |
