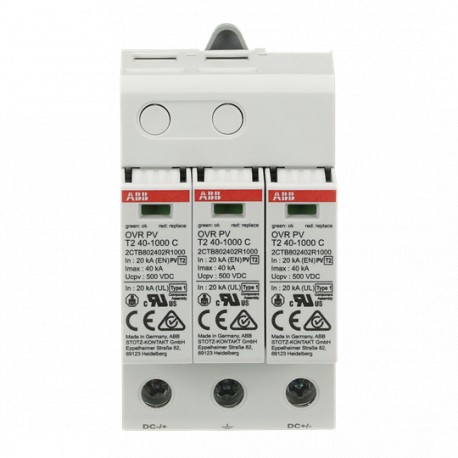

2CTB802400R1000 ABB Prot.sobret. OVRPVT240-1000PQS
2CTB802400R1000
2CTB802400R1000
ABB
1 Pcs.
Automation > Surge protection device for power supply systems
Other modular devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 2CTB802400R1000 prot.sobret. ovrpvt240-1000pqs is a specialized surge protection device designed to shield photovoltaic and solar power systems from transient overvoltages. These components are deployed in renewable energy infrastructures to limit voltage spikes and prevent catastrophic failure of inverters and DC circuits.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Suitable For: To protect the systems against the transient overvoltage (lightning)
- Voltage Rating DC: 1000 V
- Maximum Continuous Operating Voltage (U c ): (L-PE) 1000 V
- Maximum Power Point (MPP) Voltage: 1000 V
- Rated Service Short-Circuit Breaking Capacity (I cs ): 10 kA
- Discharge Current: Nominal (8 / 20 µs) 20 kA
- Short Circuit Withstand Icc: 10 kA
- Arrester Class: II
- Number of Protected Poles: 2
- Number of Poles: 3P
- Transmission Standard: Optic
- Version: Plug-in
- Options Provided: Solar
- Preventive Maintenance Feature: No
- Status Indicator: Yes
- Fuse Size: 3 modular spacing
More info
▲| Technical | |
|---|---|
| Suitable For | To protect the systems against the transient overvoltage (lightning) |
| Voltage Rating DC | 1000 V |
| Maximum Continuous Operating Voltage (Uc) | (L-PE) 1000 V |
| (L-L) 1000 V | |
| (L-N) 0 V | |
| (N-PE) 0 V | |
| Maximum Power Point (MPP) Voltage | 1000 V |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 10 kA |
| Discharge Current | Nominal (8 / 20 µs) 20 kA |
| I (max, 8 / 20 µs) 40 kA | |
| Short Circuit Withstand Icc | 10 kA |
| Arrester Class | II |
| Number of Protected Poles | 2 |
| Number of Poles | 3P |
| Transmission Standard | Optic |
| Version | Plug-in |
| Options Provided | Solar |
| Preventive Maintenance Feature | No |
| Status Indicator | Yes |
| Fuse Size | 3 modular spacing |
| Electrical | |
| Rated Voltage (Ur) | 1000 V DC |
| Voltage Protection Level ( Up) | 4 kV |
| Technical UL/CSA | |
| Maximum Continuous Operating Voltage UL/CSA (MCOV) | (L-PE) 1000 V |
| (L-L) 1000 V | |
| (L-N) 0 V | |
| (N-PE) 0 V | |
| Voltage Protection Rating UL/CSA (VPR) | Lpe 3 kV |
| Ll 3 kV | |
| Material Compliance | |
| RoHS Declaration | 9AKK108466A0826 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20230707 |
| REACH Declaration | 9AKK107492A1906 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20231212 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP20 |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Dimensions | |
| Product Net Width | 54 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 66 mm |
| Product Net Weight | 0.3 kg |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.369 kg |
| E-Number (Norway) | 1682466 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108466A0826 |
| UL Certificate | 9AKK108466A1952 |
| Installation | |
| Instructions and Manuals | 9AKK107992A4589 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107992A4590 |
| Mechanical Drawings | 9AKK108466A2019 |
| 9AKK108466A5300 | |
| 9AKK108466A5301 | |
| External Classifications and Standards | |
| ETIM 9 | EC000941 - Surge protection device for power supply systems |
| ETIM 10 | EC000941 - Surge protection device for power supply systems |
| eClass | V11.0 : 27130805 |
| Object Classification Code | 141DCC |
| Standards | IEC 61643-31 |
| UL14419 Ed5 | |
