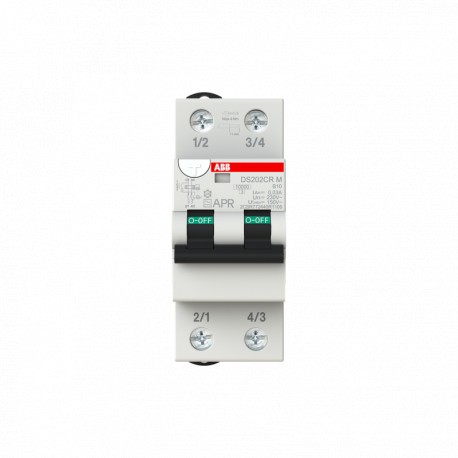

2CSR772440R1105 ABB I.com.DS202CRM 2p B 10A A APR 10kA 30mA
2CSR772440R1105
2CSR772440R1105
ABB
1 Pcs.
I.com.DS202CRM 2p B 10A A APR 10kA 30mA
DS202CR M B10 APR30 Residual Current Circuit Breaker with Overcurrent Protection
Automation > Earth leakage circuit breaker
Tertiary / Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Extended Product Type:
- DS202CR M B10 APR30
- Product ID:
- 2CSR772440R1105
- EAN:
- 4022903035220
- Catalog Description:
- DS202CR M B10 APR30 Residual Current Circuit Breaker with Overcurrent Protection
- Long Description:
- The DS202CR series RCBO is a 2P in two-modules device for the protection of end user single-phase circuits against overload and short-circuit currents. Protection against the effects of sinusoidal alternating and direct pulsating earth fault currents. Protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA).
+
–
Accessories
| Identifier | Description | Type | Qty | Unit Of Measure |
|---|---|---|---|---|
| 2CDS200931R0001 | G2C-H6-L+R Signal / Auxiliary contact | G2C-H6-L+R | 1 | piece |
| 2CDS200932R0001 | G2C-S/H6-L+R Signal / Auxiliary contact | G2C-S/H6-L+R | 1 | piece |
| 2CDS200932R0011 | G2C-S/H6-L+R-KL Signal / Auxiliary contact | G2C-S/H6-L+R-KL | 1 | piece |
Eco Transparency
- Environmental Product Declaration - EPD:
- 9AKK108467A5738
Technical
- Standards:
- IEC/EN 61009-1
IEC/EN 61009-2-1
- Tripping Characteristic:
- B
- Type of Residual Current:
- A type
- Rated Operational Voltage:
- acc. to IEC 60898-1 230 V
- Rated Insulation Voltage (Ui):
- acc. to IEC/EN 60664-1 440 V
- Rated Impulse Withstand Voltage (Uimp):
- 4 kV
- Input Voltage Type:
- AC
- Rated Current (In):
- 10 A
- Rated Residual Current:
- 30 mA
- Rated Short-Circuit Capacity:
- 10 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu):
- 10 kA
- Rated Service Short-Circuit Breaking Capacity (Ics):
- 7.5 kA
- Maximum Surge Current:
- 3 kA
- Leakage Current Type:
- A
- Frequency (f):
- 50 Hz
- Rated Frequency (f):
- 50 Hz
- Power Loss:
- 3.28 W
- Power Supply Connection:
- Arbitrary
- Energy Limiting Class:
- 3
- Electrical Endurance:
- 10000 operations
- Mechanical Endurance:
- 20000 operations
- Number of Poles:
- 2
- Number of Protected Poles:
- 2
- Fault Indication:
- Blue flag on window
- Operating Characteristic:
- Instantaneous (APR High Immunity)
- Overvoltage Category:
- III
- Position of Neutral Terminals:
- Right
Left
- Tightening Torque:
- 4 N·m
- Accessory Type:
- Auxiliary contact
Signal contact / auxiliary contact
- Earthing Switch Type:
- Short-Time Delayed
- Mounting Type:
- DIN-Rail
- Mounting Position:
- Any
- Accessories Available:
- Yes
- Number of Batteries:
- 0
- Cable Size:
- 35 mm²
- Connecting Capacity:
- Busbar 10…10 mm²
Flexible 1...25 mm²
Rigid Solid 1…35 mm²
- Rated Cross-Section:
- 1 - Solid-Core 1 … 35 mm²
4 - Multi-Wired 1 … 25 mm²
- Wire Stripping Length:
- 11 mm
Environmental
- Ambient Air Temperature:
- Operation -25 ... +55 °C
Storage -40 ... +70 °C
- Degree of Protection:
- IP20
- Pollution Degree:
- 3
- Environmental Conditions:
- 28 cycle
with 55 °C / 90-96 %
and 25 °C / 95-100 %
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Information:
- 9AKK108466A5162
- REACH Declaration:
- 9AKK108466A9708
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Width in Number of Modular Spacings:
- 2
- Product Net Width:
- 36mm
- Product Net Height:
- 86mm
- Product Net Depth / Length:
- 72mm
- Product Net Weight:
- 0.220kg
- Built-In Depth (t2):
- 72 mm
Ordering
- Minimum Order Quantity:
- 1 piece
- Package Level 1 Units:
- box 1 piece
- Package Level 1 Gross Weight:
- 0.245 kg
- Customs Tariff Number:
- 85363010
- Country of Origin:
- Poland (PL)
Certificates and Declarations
- ABS Certificate:
- 9AKK108467A7630
- Declaration of Conformity - CE:
- 9AKK108466A5162
- IMQ Certificate:
- 9AKK108467A6462
- NF Certificate:
- 9AKK108467A7737
- VDE Certificate:
- 9AKK108467A7823
Popular Downloads
- Data Sheet, Technical Information:
- 9AKK108467A1864
- Instructions and Manuals:
- 9AKK108466A5165
Classifications
- ETIM 8:
- EC000905 - Earth leakage circuit breaker
- ETIM 9:
- EC000905 - Earth leakage circuit breaker
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85363010
- eClass:
- V11.0 : 27142207
- Object Classification Code:
- F
| Feature Name | Feature Value |
|---|---|
| Number of poles (total) (EF008618) | 2 |
| Number of protected poles (EF005548) | 2 |
| Rated voltage (EF000228) | 230 V |
| Rated insulation voltage Ui (EF001366) | 440 V |
| Rated impulse withstand voltage Uimp (EF011980) | 4 kV |
| Rated current (EF000227) | 10 A |
| Rated fault current (EF002358) | 0.03 A |
| Leakage current type (EF002560) | A |
| Current limiting class (EF002568) | 3 |
| Rated short-circuit breaking capacity according to EN 61009 (EF012628) | 10 kA |
| Rated short-circuit breaking capacity according to IEC 60947-2 (EF006065) | 10 kA |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 (EF011981) | 10 kA |
| Disconnection characteristic (EF012587) | Undelayed |
| Surge current capacity (EF002564) | 3 kA |
| Voltage type (EF000187) | AC |
| Frequency (EF005455) | 50 Hz |
| Release characteristic (EF000889) | B |
| Concurrently switching neutral conductor (EF005997) | Yes |
| With interlocking device (EF007385) | No |
| Over voltage category (EF002569) | 3 |
| Pollution degree (EF002570) | 3 |
| Ambient temperature during operating (EF007515) | -25 °C |
| Width in number of modular spacings (EF002950) | 2 |
| Built-in depth (EF000218) | 72 mm |
| Anti-nuisance tripping version (EF009497) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Connectable conductor cross section multi-wired (EF007343) | 1 mm² |
