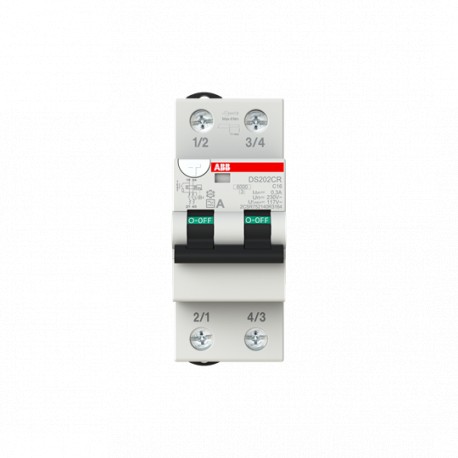

2CSR752140R3164 ABB I.com.DS202CR 2p C 16A A 10kA 300mA
2CSR752140R3164
2CSR752140R3164
ABB
1 Pcs.
I.com.DS202CR 2p C 16A A 10kA 300mA
Residual Current Circuit Breaker with Overcurrent Protection DS202CR - 2P - 300 mA - 16 A - C - Type A
Automation > Earth leakage circuit breaker
Tertiary / Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| EcoSolutions Profile | 9AKK108471A9845 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 76.95 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| UL 2799 Zero Waste To Landfill Validation available | |
| Extended Product Lifetime | Product Durability |
| Offered with Takeback Services | Take Back for Recycling |
| End Of Life Disassembling Instructions | 9AKK108469A0544 |
| Environmental Product Declaration - EPD | 9AKK108467A5738 |
| Technical | |
| Type of Residual Current | Type A |
| Test Voltage (Ut) | Minimum 117 V |
| Maximum 254 V | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 10 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 6 kA |
| Maximum Surge Current | 0.25 kA |
| Power Supply Connection | Arbitrary |
| Energy Limiting Class | 3 |
| Electrical Endurance | 10000 operations |
| Mechanical Endurance | 20000 operations |
| Number of Protected Poles | 2 |
| Number of Poles | 2P |
| Fault Indication | Blue Flag on Window |
| Operating Characteristic | Instantaneous |
| Position of Neutral Terminals | Right |
| Left | |
| Tightening Torque | 4 N·m |
| Accessory Type | Auxiliary contact |
| Signal contact / auxiliary contact | |
| Earthing Switch Type | Undelayed |
| Accessories Available | Yes |
| Number of Batteries | 0 |
| Connecting Capacity | Busbar 10…10 mm² |
| Flexible 1...25 mm² | |
| Rigid Solid 1…35 mm² | |
| Rated Cross-Section | 1 - Solid-Core 1 … 35 mm² |
| 4 - Multi-Wired 1 … 25 mm² | |
| Wire Stripping Length | 11 mm |
| Electrical | |
| Tripping Characteristic | C |
| Rated Operational Voltage | acc. to IEC 60898-1 230 V |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Input Voltage Type | AC |
| Rated Current (In) | 16 A |
| Rated Residual Current | 300 mA |
| Rated Short-Circuit Capacity | 6 kA |
| Rated Frequency (f) | 50 Hz |
| Power Loss | Total 4.20 W |
| Overvoltage Category | III |
| Material Compliance | |
| RoHS Declaration | 9AKK108466A5162 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20220211 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20220525 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 16d43f0f-58e2-46e4-9af9-ecaae7a78c5e Poland |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -25 … 55 °C |
| Degree of Protection | IP20 |
| Pollution Degree | 3 |
| Environmental Conditions | 28 cycle |
| with 55 °C / 90-96 % | |
| and 25 °C / 95-100 % | |
| Dimensions | |
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 36 mm |
| Product Net Height | 86 mm |
| Product Net Depth / Length | 72 mm |
| Product Net Weight | 0.220 kg |
| Built-In Depth (t2) | 72 mm |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.245 kg |
| E-Number (Norway) | 1629942 |
| Certificates and Declarations | |
| ABS Certificate | 9AKK108467A7630 |
| Declaration of Conformity - CE | 9AKK108470A7536 |
| IMQ Certificate | 9AKK108467A6463 |
| NF Certificate | 9AKK108467A7736 |
| VDE Certificate | 9AKK108467A7823 |
| Installation | |
| Instructions and Manuals | 9AKK108466A5165 |
| Mounting Type | DIN-Rail |
| Mounting Position | Any |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK108467A1864 |
| External Classifications and Standards | |
| ETIM 9 | EC000905 - Earth leakage circuit breaker |
| ETIM 10 | EC000905 - Earth leakage circuit breaker |
| UNSPSC | 39121601 |
| eClass | V11.0 : 27142207 |
| Object Classification Code | F |
| Standards | IEC/EN 61009-1 |
| IEC/EN 61009-2-1 | |
