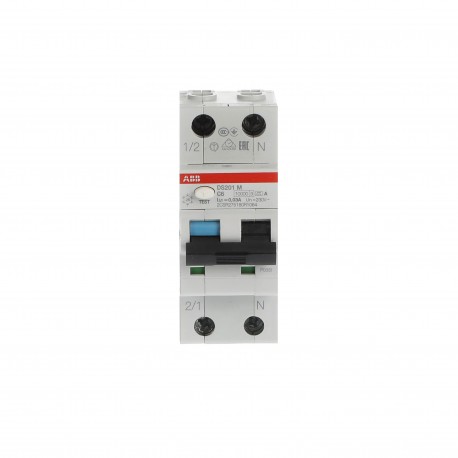

I.com.DS200M 1p+N C 6A A 15kA 30mA Residual Current Circuit Breaker with Overcurrent Protection DS201 M - 1P+N - 30 mA - 6 A - C - Type A

Automation > Earth leakage circuit breaker
Tertiary / Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
EcoSolutions Profile9AKK108470A2163
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 75.20 %
ABB Site Meeting Group Waste To Landfill TargetNo non-hazardous waste is sent to a landfill
UL 2799 Zero Waste To Landfill Validation available
Sustainable Material Content in Packaging (wt. %)Recycled Cardboard - 98 %
Recycled Paper - 00 %
Chemically Recycled Polymer - 00 %
Extended Product LifetimeProduct Durability
End Of Life Disassembling Instructions9AKK108469A2268
Environmental Product Declaration - EPD9AKK108468A5756
Technical
Type of Residual CurrentType A
Test Voltage (Ut)Minimum 170 V
Maximum 264 V
Dielectric Test Voltage2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu)15 kA
Rated Residual Breaking Capacity (IΔm)EN 61009-1 6000 A
IEC 61009-1 6000 A
Rated Service Short-Circuit Breaking Capacity (Ics)11.2 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)10 kA
Power Supply ConnectionArbitrary
Contact Position IndicationRed ON / Green OFF
Energy Limiting Class3
Electrical Endurance10000 cycle
Mechanical Endurance20000 cycle
Number of Protected Poles1
Number of Poles1P+N
Number of Modular Spacings per DIN Rail2
Fault IndicationBlue Flag on Toggle
Operating CharacteristicInstantaneous
Position of Neutral TerminalsRight
Tightening Torque2.8 N·m
Accessory TypeAuxiliary contact, Signal contact / auxiliary contact, Shunt trip, Auxiliary contact for bottom fitting, Overvoltage release, Motor operating device
Actuator TypeToggle - Insulation group II, Black RAL 9005, sealable in ON-OFF positions
Earthing Switch TypeUndelayed
Housing TypeInsulation group I - II, RAL 7035
Screw Terminal TypeFailsafe Bi-directional Cylinder-lift Terminal
Accessories AvailableYes
Number of Batteries0
Connecting CapacityRigid 0.75 ... 25 mm²
Flexible 0.75 ... 16 mm²
Rated Cross-Section1 - Solid-Core 0.75 … 25 mm²
4 - Multi-Wired 0.75 … 16 mm²
Wire Stripping Length12 mm
Terminal TypeScrew Terminals
Electrical
Tripping CharacteristicC
Rated Operational Voltageacc. to IEC 60898-1 240 V
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Input Voltage TypeAC
Rated Current (In)6 A
Rated Residual Current30 mA
Rated Short-Circuit Capacity10 kA
Rated Conditional Short-Circuit Current (Inc)15 kA
Rated Frequency (f)50 / 60 Hz
Power LossAverage per Pole 1.3 W
Phase Pole 2.4 W
Neutral Pole 0.2 W
Total 2.6 W
Overvoltage CategoryIII
Material Compliance
RoHS Declaration9AKK106713A5588
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20211115
REACH Declaration9AKK108467A9482
REACH InformationTrue - contains substances > 0.1 mass percentage
REACH Date20240429
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
SCIP0a9c2c22-4023-4f50-b8fd-525d9ea8c157 Italy
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Environmental
Ambient Air TemperatureOperation -25 … 55 °C
Reference Ambient Air Temperature30 °C
Degree of ProtectionIP20
IP40
Pollution Degree2
Environmental Conditions28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
Resistance to Vibrations20 Cycles with Load 0.8 In: 1g or 1mm 50 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-2725g 2 shocks 13 ms
Environmental Information2CSC422002K2701
Dimensions
Width in Number of Modular Spacings2
Product Net Width35 mm
Product Net Height85 mm
Product Net Depth / Length69 mm
Product Net Weight200 g
Built-In Depth (t2)69 mm
Engineering
EPLAN Data9AAC554444_EPLAN
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight225 g
E-Number (Finland)3211214
E-Number (Norway)1683058
E-Number (Sweden)2100618
Certificates and Declarations
ABS Certificate9AKK107991A2823
CB Certificate9AKK107492A6064
9AKK107492A6065
CCC Certificate9AKK107492A6069
Declaration of Conformity - CE9AKK106713A5588
DNV GL Certificate9AKK107680A3457
9AKK107680A3456
EAC Certificate9AKK107492A6071
9AKK107991A7755
GOST Certificate9AKK107992A1640
KEMA Certificate9AKK107492A6077
ÖVE Certificate9AKK107492A6086
RMRS Certificate9AKK107680A3454
9AKK107680A3455
SEV Certificate9AKK107680A1558
9AKK107680A1560
VDE Certificate9AKK107492A6093
Installation
Instructions and Manuals9AKK107492A6006
Mounting TypeDIN-Rail
Mounting PositionAny
Popular Downloads
Data Sheet, Technical Information9AKK107492A6187
External Classifications and Standards
ETIM 9EC000905 - Earth leakage circuit breaker
ETIM 10EC000905 - Earth leakage circuit breaker
UNSPSC39121601
eClassV11.0 : 27142207
IDEA Granular Category Code (IGCC)4875 >> Residual current circuit breaker (RCCB)
Object Classification CodeF
StandardsIEC/EN 61009-1, IEC/EN 61009-2-1

ETIM for 2CSR275180R1064 Circuit breakers and fuses (EC000905)
Feature Name Feature Value
Number of poles (total) (EF008618) 2
Number of protected poles (EF005548) 1
Rated voltage (EF000228) 240 V
Rated insulation voltage Ui (EF001366) 500 V
Rated impulse withstand voltage Uimp (EF011980) 4 kV
Rated current (EF000227) 6 A
Rated fault current (EF002358) 0.03 A
Leakage current type (EF002560) A
Current limiting class (EF002568) 3
Rated short-circuit breaking capacity according to EN 61009 (EF012628) 10 kA
Rated short-circuit breaking capacity according to IEC 60947-2 (EF006065) 15 kA
Rated short-circuit breaking capacity Icn according to EN 61009-1 (EF011981) 10 kA
Disconnection characteristic (EF012587) Undelayed
Voltage type (EF000187) AC
Frequency (EF005455) 50/60 Hz
Release characteristic (EF000889) C
Concurrently switching neutral conductor (EF005997) Yes
With interlocking device (EF007385) No
Over voltage category (EF002569) 3
Pollution degree (EF002570) 2
Ambient temperature during operating (EF007515) -25 °C
Width in number of modular spacings (EF002950) 2
Built-in depth (EF000218) 69 mm
Anti-nuisance tripping version (EF009497) No
Degree of protection (IP) (EF005474) IP20
Connectable conductor cross section multi-wired (EF007343) 0.75 mm²

Product Datasheet
