View larger
Images are for illustrative purposes only. Please refer to data sheet for details

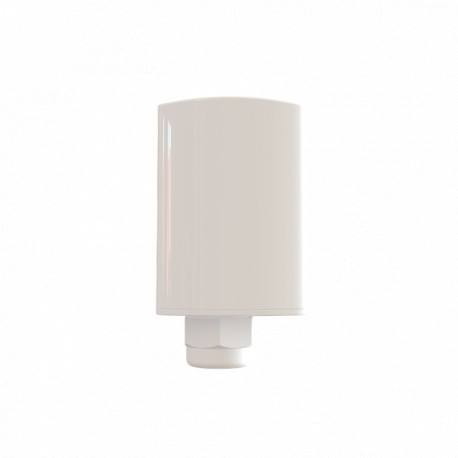

2CSM250421R1000 ABB D-line DY DCF77 synchronization antenna
2CSM250421R1000
250421
ABB
1 Pcs.
D-line DY DCF77 synchronization antenna
DY DCF77 Digital timer
Automation > Digital time switch for distribution board
Other modular devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Function | Antenna |
| Power Supply | 12 V DC |
| Number of Connections | 31 |
| Tightening Torque | 0.5 N·m |
| Meter Type | Digital |
| Cable Length | 100 m |
| Connecting Capacity | Solid 1.5 mm² |
| Electrical | |
| Rated Frequency (f) | 50 ... 60 Hz |
| Power Loss | Total 0.048 V·A |
| Material Compliance | |
| RoHS Declaration | 2CSC441020D2701 |
| RoHS Information | Following EU Directive 2011/65/EU |
| RoHS Date | 20211115 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation 0 ... +50 °C |
| Storage -10 ... +60 °C | |
| Degree of Protection | Housing IP20 |
| Dimensions | |
| Product Net Width | 41 mm |
| Product Net Height | 89 mm |
| Product Net Depth / Length | 52 mm |
| Product Net Weight | 100 g |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.145 kg |
| E-Number (Sweden) | 1330656 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CSC441020D2701 |
| Installation | |
| Instructions and Manuals | 9AKK107680A8468 |
| Mounting Type | Wall Mounting |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107991A8329 |
| External Classifications and Standards | |
| ETIM 9 | EC002305 - Digital time switch for distribution board |
| ETIM 10 | EC002305 - Digital time switch for distribution board |
| UNSPSC | 39122208 |
| eClass | V11.0 : 27200110 |
| IDEA Granular Category Code (IGCC) | 5188 >> Digital time switch for distribution board |
| Object Classification Code | K |
| Standards | EN-301 489-1 |
| EN-301 489-3 | |
| EN-301 489-19 | |
| EN-300 330 | |
| EN-60950-1 | |
| EN 50581 | |
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP20 |
| Width (EF000008) | 41 mm |
| Height (EF000040) | 89 mm |
| Depth (EF000049) | 52 mm |
