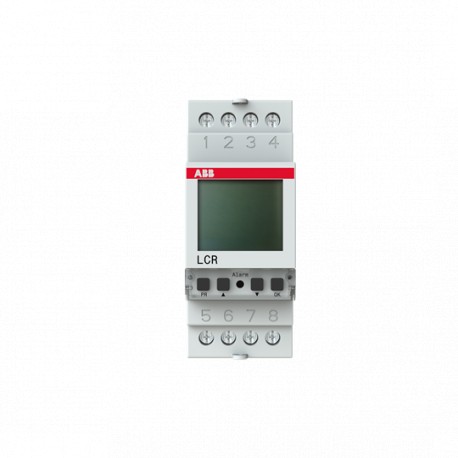

2CSM229901R1311 ABB LCR consumption rationalizer
2CSM229901R1311
229901
ABB
1 Pcs.
Automation > Load shedding relay for distribution board
Other modular devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
2CSM229901R1311 ABB LCR consumption rationalizer hardware monitors electrical power consumption levels and helps manage loads within industrial distribution installations. Such devices optimize energy usage by automatically shedding non-essential circuits when demand approaches preset thresholds.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Delay Time ( τ ): Load Disconnection 0...9999 second [unit of time]
- Display Type: LCD Backlit
- Connecting Capacity: Rigid max. 4 mm²
- Operating Humidity (RH amb ): max. 90% ( non-condensing)
- Input Current: 32 A
- Input Voltage (U in ): 230 (-15%/+10%) V AC
- Rated Frequency (f): 50/60 Hz
- Power Consumption (@P cons ): 6 V·A
- Number of Contacts CO: 0
- Number of Contacts NC: 0
- Number of Contacts NO: 1
- RoHS Declaration: 9AKK107492A4196
- RoHS Information: Following EU Directive 2011/65/EU
- RoHS Date: 20190522
- REACH Declaration: 9AKK108467A9482
- REACH Information: False - does not contain substances > 0.1 mass percentage
More info
▲| Technical | |
|---|---|
| Delay Time (τ) | Load Disconnection 0...9999 second [unit of time] |
| Between Connections 0…9999 second [unit of time] | |
| Display Type | LCD Backlit |
| Remarks | Load OFF conditions are indicated by red LED and integrated buzzers. At preset time intervals, the device automatically attempts to reconnect the previously disabled load |
| Connecting Capacity | Rigid max. 4 mm² |
| Flexible max. 6 mm² | |
| Operating Humidity (RHamb) | max. 90% ( non-condensing) |
| Input Current | 32 A |
| Electrical | |
| Input Voltage (Uin) | 230 (-15%/+10%) V AC |
| Rated Frequency (f) | 50/60 Hz |
| Power Consumption (@Pcons) | 6 V·A |
| Number of Contacts CO | 0 |
| Number of Contacts NC | 0 |
| Number of Contacts NO | 1 |
| Material Compliance | |
| RoHS Declaration | 9AKK107492A4196 |
| RoHS Information | Following EU Directive 2011/65/EU |
| RoHS Date | 20190522 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Ambient Air Temperature | Operation -10…45 °C |
| Storage -10…65 °C | |
| Degree of Protection | Terminals IP20 |
| Front IP51 | |
| Dimensions | |
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 36 mm |
| Product Net Height | 87.5 mm |
| Product Net Depth / Length | 65 mm |
| Product Net Weight | 135 g |
| Built-In Depth (t2) | 65 mm |
| Screen Size | 1.408 in |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 168 g |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK107492A4196 |
| Installation | |
| Instructions and Manuals | 9AKK107492A2346 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| External Classifications and Standards | |
| ETIM 9 | EC001655 - Load shedding relay for distribution board |
| ETIM 10 | EC001655 - Load shedding relay for distribution board |
| eClass | V11.0 : 27142332 |
| Object Classification Code | K |
