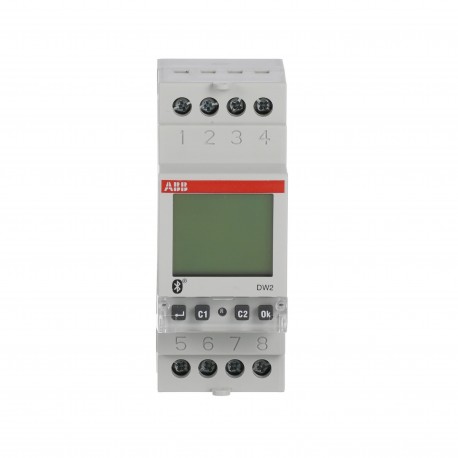

2CSM222521R1000 ABB DW2 Digital Programmer
2CSM222521R1000
222521
ABB
1 Pcs.
Automation > Digital time switch for distribution board
Other modular devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Abb 2CSM222521R1000 digital programmer executes user-defined weekly schedules to automate electrical power distribution in commercial panels. Digital control programmers streamline operational workflows by toggling connected equipment on and off at predetermined intervals. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Function: Weekly
- Power Supply: 230 V AC
- Accuracy: ± 0.5sec/24h
- Number of Channels: 2
- Maximum Number of Programs: 120
- Tightening Torque: 0.5 N·m
- Minimum Switching Time: 1 minute [unit of time]
- Contact Type: Change-Over (CO)
- Meter Type: Digital
- Options Provided: With running reserve
- Number of Batteries: 1
- Battery Size: CR2032
- Battery Chemical Composition: Lithium Metal
- Battery Integration Type: Replaceable Non-Rechargeable
- Battery Life: 5 year
- Battery Weight: 0.003 kg
More info
▲| Technical | |
|---|---|
| Function | Weekly |
| Power Supply | 230 V AC |
| Accuracy | ± 0.5sec/24h |
| Number of Channels | 2 |
| Maximum Number of Programs | 120 |
| Tightening Torque | 0.5 N·m |
| Minimum Switching Time | 1 minute [unit of time] |
| Contact Type | Change-Over (CO) |
| Meter Type | Digital |
| Options Provided | With running reserve |
| Number of Batteries | 1 |
| Battery Size | CR2032 |
| Battery Chemical Composition | Lithium Metal |
| Battery Integration Type | Replaceable Non-Rechargeable |
| Battery Life | 5 year |
| Battery Weight | 0.003 kg |
| Battery Lithium Amount | 0.07 g |
| Connecting Capacity | Solid 2.5 mm² |
| Communication Protocol | Bluetooth |
| Electrical | |
| Operational Voltage | 195.5 ... 253 V AC |
| Supply Voltage | 230 V AC |
| Rated Impulse Withstand Voltage (Uimp) | Maximum 4 kV |
| Maximum Switching Current | 16 A |
| Rated Frequency (f) | 50 ... 60 Hz |
| Maximum Switching Power | 4000 W |
| Power Consumption (@Pcons) | 2 W |
| Power Loss | Total 2 W |
| Rated Switching Capacity | 2000 W |
| FluorescentLamps 600 V·A | |
| 2000 W | |
| 600 V·A | |
| 500 W | |
| Material Compliance | |
| RoHS Declaration | 2CSC441018D2701 |
| RoHS Information | Following EU Directive 2011/65/EU |
| RoHS Date | 20211115 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Battery Type | Button Cell |
| Environmental | |
| Ambient Air Temperature | Operation -20 ... +50 °C |
| Storage -25 ... +70 °C | |
| Degree of Protection | Housing IP20 |
| Dimensions | |
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 35 mm |
| Product Net Height | 65 mm |
| Product Net Depth / Length | 87 mm |
| Product Net Weight | 152 g |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.233 kg |
| E-Number (Finland) | 2619407 |
| E-Number (Norway) | 1471251 |
| E-Number (Sweden) | 1330651 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CSC441018D2701 |
| Installation | |
| Instructions and Manuals | 2CSM441050D0201 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107991A8329 |
| External Classifications and Standards | |
| ETIM 9 | EC002305 - Digital time switch for distribution board |
| ETIM 10 | EC002305 - Digital time switch for distribution board |
| UNSPSC | 39122208 |
| Dangerous Goods UN Number | UN 3090 |
| eClass | V11.0 : 27200110 |
| IDEA Granular Category Code (IGCC) | 5188 >> Digital time switch for distribution board |
| Object Classification Code | K |
| Standards | EN 60730-2-7 |
| EN-301 489-17 | |
| EN-300 328 | |
| EN-62479 | |
| EN 50581 | |
