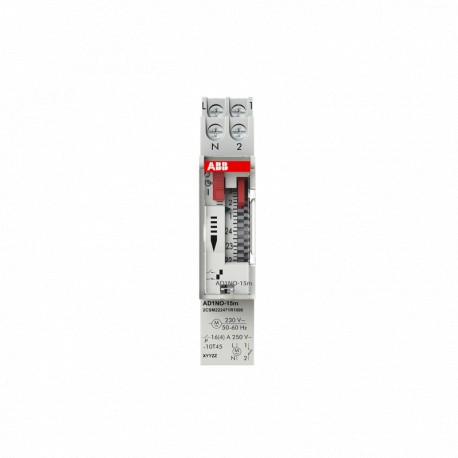

2CSM222471R1000 ABB Int. schedule without reservation AD1NO-15m
2CSM222471R1000
222471
ABB
1 Pcs.
Automation > Analogous time switch for distribution board
Other modular devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 2CSM222471R1000 ABB Int. schedule without reservation AD1NO-15m is an electromechanical time switch designed for DIN-rail mounting to control electrical loads on a daily repeating cycle. Such components are commonly integrated into commercial and industrial distribution boards to manage scheduled power distribution for lighting, heating, or auxiliary machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Function: Daily
- Maximum Load Capacity: Resistive Load 16 A
- Power Supply: (-15%..+10%) 230 V AC
- Accuracy: Operating accuracy: ± 1 second/day at 23°C
- Number of Channels: 1
- Tightening Torque: 0.3 N·m
- Minimum Switching Time: 15 minute [unit of time]
- Contact Type: Normally Open (NO)
- Meter Type: Electromechanical
- Number of Batteries: 0
- Connecting Capacity: Solid 4 mm²
- Terminal Type: Captive Screw
- Rated Operational Voltage: 230 V
- Operational Voltage: Maximum (Incl. Tolerance) 195 V AC
- Supply Voltage: 230 V
- Rated Frequency (f): 50 ... 60 Hz
More info
▲| Technical | |
|---|---|
| Function | Daily |
| Maximum Load Capacity | Resistive Load 16 A |
| Inductive Load 4 A | |
| Power Supply | (-15%..+10%) 230 V AC |
| Accuracy | Operating accuracy: ± 1 second/day at 23°C |
| Switching accuracy: ± 5 minutes | |
| Number of Channels | 1 |
| Tightening Torque | 0.3 N·m |
| Minimum Switching Time | 15 minute [unit of time] |
| Contact Type | Normally Open (NO) |
| Meter Type | Electromechanical |
| Number of Batteries | 0 |
| Connecting Capacity | Solid 4 mm² |
| Terminal Type | Captive Screw |
| Electrical | |
| Rated Operational Voltage | 230 V |
| Operational Voltage | Maximum (Incl. Tolerance) 195 V AC |
| Maximum (Incl. Tolerance) ...253 V AC | |
| Supply Voltage | 230 V |
| Rated Frequency (f) | 50 ... 60 Hz |
| Maximum Switching Power | 4000 W |
| Incandescent Lamp or Halogen High Voltage Lamps 2500 W | |
| Fluorescent Lamp 1200 W | |
| Low Voltage Halogen Lamp 2000 W | |
| Low Consumption Lamp (CFL) 2500 W | |
| LED 900 W | |
| Power Consumption (@Pcons) | 0.5 W |
| Power Loss | Total 0.5 W |
| Material Compliance | |
| RoHS Declaration | 2CSC441017D2701 |
| RoHS Information | Following EU Directive 2011/65/EU |
| RoHS Date | 20211115 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -10 ... 45 °C |
| Storage -20 ... 60 °C | |
| Degree of Protection | Housing IP20 |
| Dimensions | |
| Width in Number of Modular Spacings | 1 |
| Product Net Width | 17.5 mm |
| Product Net Height | 66 mm |
| Product Net Depth / Length | 90 mm |
| Product Net Weight | 72 g |
| Dimension Diagram | 9AKK107992A8050 |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.085 kg |
| E-Number (Sweden) | 1330661 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CSC441017D2701 |
| Installation | |
| Instructions and Manuals | 2CSM441039D5601 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107991A8329 |
| External Classifications and Standards | |
| ETIM 9 | EC002304 - Analogous time switch for distribution board |
| ETIM 10 | EC002304 - Analogous time switch for distribution board |
| UNSPSC | 39122208 |
| eClass | V11.0 : 27200109 |
| IDEA Granular Category Code (IGCC) | 5189 >> Electromechanical Time Switches |
| Object Classification Code | K |
| Standards | EN 60730-2-7 |
