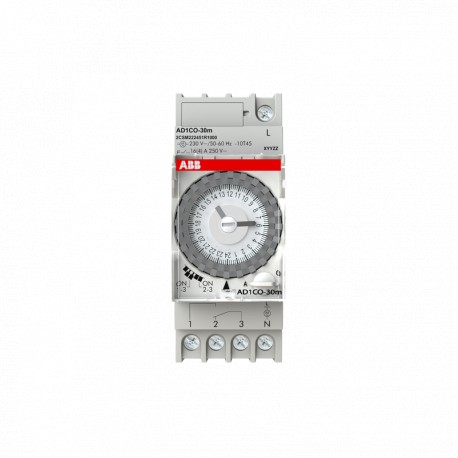

An electromechanical time switch, the Abb 2CSM222451R1000 provides automated daily scheduling control for electrical loads within industrial and commercial switchboards. Time switches are widely used across automated facilities to regulate lighting, HVAC systems, and machinery cycles based on a preset chronological routine.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Function: Daily
- Maximum Load Capacity: Resistive Load 16 A
- Power Supply: (-15%..+10%) 230 V AC
- Accuracy: Operating accuracy: ± 1 second/day at 23°C
- Number of Channels: 1
- Tightening Torque: 0.5 N·m
- Minimum Switching Time: 30 minute [unit of time]
- Contact Type: Change-Over (CO)
- Meter Type: Electromechanical
- Number of Batteries: 0
- Battery Chemical Composition: Nickel-Metal Hydride
- Battery Weight: 0.004 kg
- Connecting Capacity: Solid 4 mm²
- Terminal Type: Captive Screw
- Rated Operational Voltage: 230 V
- Operational Voltage: Maximum (Incl. Tolerance) 195 V AC
More info
▲| Technical | |
|---|---|
| Function | Daily |
| Maximum Load Capacity | Resistive Load 16 A |
| Inductive Load 4 A | |
| Power Supply | (-15%..+10%) 230 V AC |
| Accuracy | Operating accuracy: ± 1 second/day at 23°C |
| Switching accuracy: ± 5 minutes | |
| Number of Channels | 1 |
| Tightening Torque | 0.5 N·m |
| Minimum Switching Time | 30 minute [unit of time] |
| Contact Type | Change-Over (CO) |
| Meter Type | Electromechanical |
| Number of Batteries | 0 |
| Battery Chemical Composition | Nickel-Metal Hydride |
| Battery Weight | 0.004 kg |
| Connecting Capacity | Solid 4 mm² |
| Terminal Type | Captive Screw |
| Electrical | |
| Rated Operational Voltage | 230 V |
| Operational Voltage | Maximum (Incl. Tolerance) 195 V AC |
| Maximum (Incl. Tolerance) ...253 V AC | |
| Supply Voltage | 230 V |
| Rated Frequency (f) | 50 ... 60 Hz |
| Maximum Switching Power | Incandescent Lamp or Halogen High Voltage Lamps 3000 W |
| Fluorescent Lamp 1200 W | |
| Low Voltage Halogen Lamp 2000 W | |
| Low Consumption Lamp (CFL) 900 W | |
| LED 100 W | |
| Power Consumption (@Pcons) | 0.5 W |
| Power Loss | Total 0.5 W |
| Material Compliance | |
| RoHS Declaration | 2CSC441017D2701 |
| RoHS Information | Following EU Directive 2011/65/EU |
| RoHS Date | 20211115 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -10 ... 50 °C |
| Storage -20 ... 70 °C | |
| Degree of Protection | Housing IP20 |
| Dimensions | |
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 35 mm |
| Product Net Height | 66 mm |
| Product Net Depth / Length | 88 mm |
| Product Net Weight | 105 g |
| Dimension Diagram | 9AKK107992A8051 |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.121 kg |
| E-Number (Sweden) | 1330663 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CSC441017D2701 |
| Installation | |
| Instructions and Manuals | 2CSM441042D5601 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107991A8329 |
| External Classifications and Standards | |
| ETIM 9 | EC002304 - Analogous time switch for distribution board |
| ETIM 10 | EC002304 - Analogous time switch for distribution board |
| UNSPSC | 39122208 |
| eClass | V11.0 : 27200109 |
| IDEA Granular Category Code (IGCC) | 5189 >> Electromechanical Time Switches |
| Object Classification Code | K |
| Standards | EN 60730-2-7 |
