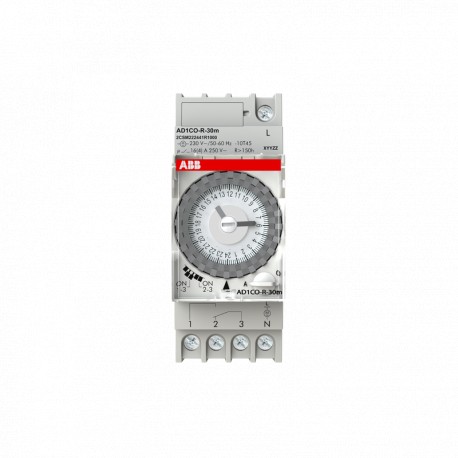

2CSM222441R1000 ABB Int. time AD1CO-R-30m
2CSM222441R1000
222441
ABB
1 Pcs.
Automation > Analogous time switch for distribution board
Other modular devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A daily time switch with a running reserve, the Abb 2CSM222441R1000 maintains accurate program execution through power supply fluctuations. Time controllers of this design are widely implemented in industrial automation to regulate daily operational intervals for auxiliary electrical systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Function: Daily
- Maximum Load Capacity: Resistive Load 16 A
- Power Supply: (-15%..+10%) 230 V AC
- Accuracy: Operating accuracy: ± 1 second/day at 23°C
- Number of Channels: 1
- Tightening Torque: 0.5 N·m
- Minimum Switching Time: 30 minute [unit of time]
- Contact Type: Change-Over (CO)
- Meter Type: Electromechanical
- Options Provided: With running reserve
- Number of Batteries: 1
- Battery Chemical Composition: Nickel-Metal Hydride
- Battery Life: 150 hour
- Battery Weight: 0.004 kg
- Connecting Capacity: Solid 4 mm²
- Terminal Type: Captive Screw
More info
▲| Technical | |
|---|---|
| Function | Daily |
| Maximum Load Capacity | Resistive Load 16 A |
| Inductive Load 4 A | |
| Power Supply | (-15%..+10%) 230 V AC |
| Accuracy | Operating accuracy: ± 1 second/day at 23°C |
| Switching accuracy: ± 5 minutes | |
| Number of Channels | 1 |
| Tightening Torque | 0.5 N·m |
| Minimum Switching Time | 30 minute [unit of time] |
| Contact Type | Change-Over (CO) |
| Meter Type | Electromechanical |
| Options Provided | With running reserve |
| Number of Batteries | 1 |
| Battery Chemical Composition | Nickel-Metal Hydride |
| Battery Life | 150 hour |
| Battery Weight | 0.004 kg |
| Connecting Capacity | Solid 4 mm² |
| Terminal Type | Captive Screw |
| Electrical | |
| Rated Operational Voltage | 230 V |
| Operational Voltage | Maximum (Incl. Tolerance) 195 V AC |
| Maximum (Incl. Tolerance) ...253 V AC | |
| Supply Voltage | 230 V |
| Rated Frequency (f) | 50 ... 60 Hz |
| Maximum Switching Power | Incandescent Lamp or Halogen High Voltage Lamps 3000 W |
| Fluorescent Lamp 1200 W | |
| Low Voltage Halogen Lamp 2000 W | |
| Low Consumption Lamp (CFL) 900 W | |
| LED 100 W | |
| Power Consumption (@Pcons) | 0.5 W |
| Power Loss | Total 0.5 W |
| Material Compliance | |
| RoHS Declaration | 2CSC441017D2701 |
| RoHS Information | Following EU Directive 2011/65/EU |
| RoHS Date | 20211115 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Battery Type | Button Cell |
| Environmental | |
| Ambient Air Temperature | Operation -10 ... 50 °C |
| Storage -20 ... 70 °C | |
| Degree of Protection | Housing IP20 |
| Dimensions | |
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 35 mm |
| Product Net Height | 66 mm |
| Product Net Depth / Length | 88 mm |
| Product Net Weight | 109 g |
| Dimension Diagram | 9AKK107992A8051 |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.125 kg |
| E-Number (Sweden) | 1330664 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CSC441017D2701 |
| Installation | |
| Instructions and Manuals | 2CSM441042D5601 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107991A8329 |
| External Classifications and Standards | |
| ETIM 9 | EC002304 - Analogous time switch for distribution board |
| ETIM 10 | EC002304 - Analogous time switch for distribution board |
| UNSPSC | 39122208 |
| eClass | V11.0 : 27200109 |
| IDEA Granular Category Code (IGCC) | 5189 >> Electromechanical Time Switches |
| Object Classification Code | K |
| Standards | EN 60730-2-7 |
