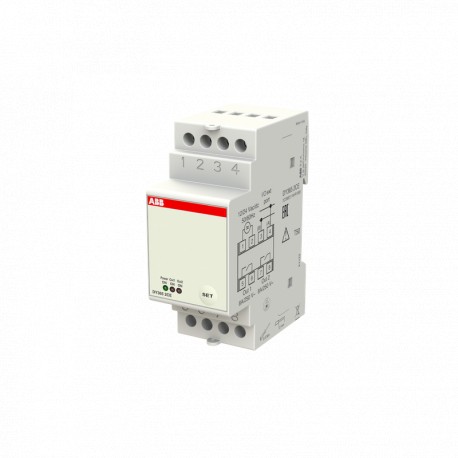

ABB 2CSM221191R1000 2CSM221191R1000 ABB 2-channel expansion module for DY365 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CSM221191R1000 ABB 2-channel expansion module for DY365

2CSM221191R1000

221191

ABB

1 Pcs.

2-channel expansion module for DY365 DY365 2CE Digital timer

Automation > Digital time switch for distribution board
Other modular devices

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

ABB module 2CSM221191R1000 serves as a multi-channel expansion unit designed to extend the switching capacity of base timer systems. Expansion modules allow larger automation networks to scale their control outputs efficiently from a single master controller. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Function: Channel extension
  • Power Supply: 12 V AC
  • Number of Channels: 2
  • Tightening Torque: 0.5 N·m
  • Contact Type: Normally Open (NO)
  • Meter Type: Digital
  • Rated Operational Voltage: 12 / 24 V
  • Supply Voltage: 12 / 24 V
  • Maximum Switching Current: 16 A
  • Rated Frequency (f): 50 ... 60 Hz
  • Power Consumption (@P cons ): 0.15 W
  • RoHS Declaration: 2CSC441019D2701
  • RoHS Information: Following EU Directive 2011/65/EU
  • RoHS Date: 20211115
  • REACH Declaration: 9AKK108467A9482
  • REACH Information: False - does not contain substances > 0.1 mass percentage

More info

▲
Technical
FunctionChannel extension
Power Supply12 V AC
24 V DC
Number of Channels2
Tightening Torque0.5 N·m
Contact TypeNormally Open (NO)
Meter TypeDigital
Electrical
Rated Operational Voltage12 / 24 V
Supply Voltage12 / 24 V
Maximum Switching Current16 A
Rated Frequency (f)50 ... 60 Hz
Power Consumption (@Pcons)0.15 W
Material Compliance
RoHS Declaration2CSC441019D2701
RoHS InformationFollowing EU Directive 2011/65/EU
RoHS Date20211115
REACH Declaration9AKK108467A9482
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240429
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Environmental
Ambient Air TemperatureOperation 0 ... +50 °C
Storage -25 ... +70 °C
Degree of ProtectionHousing IP20
Dimensions
Product Net Width35 mm
Product Net Height60 mm
Product Net Depth / Length87 mm
Product Net Weight185 g
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight0.210 kg
E-Number (Sweden)1330659
Certificates and Declarations
Declaration of Conformity - CE2CSC441019D2701
Installation
Instructions and Manuals2CSM441047D0201
Mounting TypeDIN-Rail
Popular Downloads
Data Sheet, Technical Information9AKK107991A8329
External Classifications and Standards
ETIM 9EC002305 - Digital time switch for distribution board
ETIM 10EC002305 - Digital time switch for distribution board
UNSPSC39122208
eClassV11.0 : 27200110
IDEA Granular Category Code (IGCC)5188 >> Digital time switch for distribution board
Object Classification CodeK
StandardsEN 60730-2-7
EN-301 489-1
EN-301 489-3
EN-301 489-17
EN-301 489-19
EN-300 328
EN-62479
EN-60950-1
EN 50581
