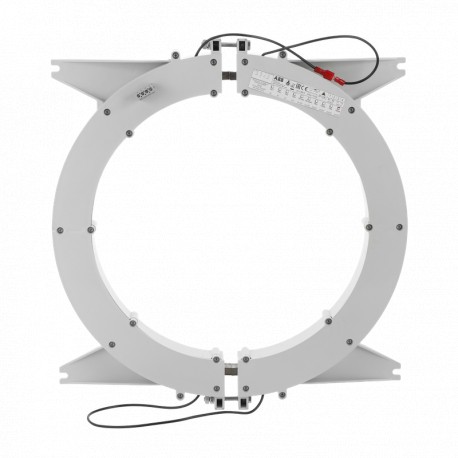

ABB 2CSG300200R1211 2CSG300200R1211 ABB TR6/A D300 SPLIT CORE SWITCH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CSG300200R1211 ABB TR6/A D300 SPLIT CORE SWITCH

2CSG300200R1211

2CSG300200R1211

ABB

1 Pcs.

TR6/A D300 SPLIT CORE SWITCH Toroidal Transformer TR

Automation > Current transformer
Industrial residual current circuit breaker

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Abb TR6/A D300 split core switch operates as an openable through-feed current converter built to capture electrical measurements around existing cables without interrupting service. Such split-core units enable rapid field deployment for temporary or permanent energy monitoring systems in complex industrial installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model Number: Through-feed current converter
  • Meter Type: openable
  • RoHS Declaration: 9AKK106713A5628
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20220119
  • REACH Declaration: 9AKK108467A9482
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • REACH Date: 20240429
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B: Business To Business
  • Ambient Air Temperature: Operation -10 ... +70 °C
  • Product Net Width: 385 mm
  • Product Net Height: 416 mm
  • Product Net Depth / Length: 60 mm
  • Product Net Weight: 230 g

More info

▲
Technical
Model NumberThrough-feed current converter
Meter Typeopenable
Material Compliance
RoHS Declaration9AKK106713A5628
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20220119
REACH Declaration9AKK108467A9482
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240429
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Business
Environmental
Ambient Air TemperatureOperation -10 ... +70 °C
Storage -20 ... +80 °C
Dimensions
Product Net Width385 mm
Product Net Height416 mm
Product Net Depth / Length60 mm
Product Net Weight230 g
Inside Diameter300 mm
Bore Diameter300 mm
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight2850 g
Certificates and Declarations
Declaration of Conformity - CE9AKK106713A5628
Installation
Popular Downloads
Data Sheet, Technical Information9AKK107046A0424
External Classifications and Standards
ETIM 9EC002048 - Current transformer
ETIM 10EC002048 - Current transformer
eClassV11.0 : 27210902
Object Classification CodeF
