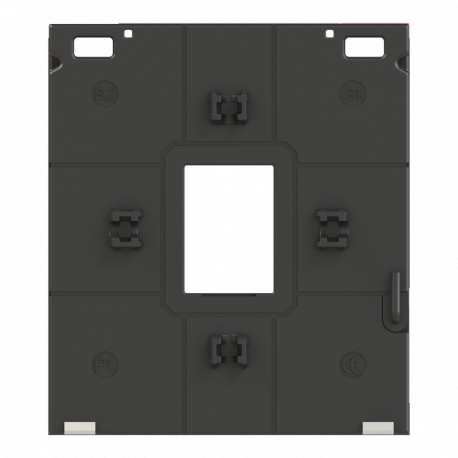

ABB 2CSG280725R1000 2CSG280725R1000 ABB Intens transformer. CT1M-S-30 100 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CSG280725R1000 ABB Intens transformer. CT1M-S-30 100

2CSG280725R1000

280725

ABB

1 Pcs.

Intens transformer. CT1M-S-30 100 CT1M-S-30 100 Current Transformer

Automation > Current transformer
AER and Transformers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Abb 2CSG280725R1000 is an instrument current transformer built to deliver accurate signal reduction for electrical measurement and protection systems. Engineers install these devices in power distribution setups to scale down heavy primary amperages so that downstream meters operate safely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Cable Use: Vertical Bar
  • Rated Primary Current (I pn ): 100 A
  • Rated Secondary Current (I sn ): 5 A
  • Current Limit Function: FS 10
  • Accuracy: ±1%
  • Number of Inputs: Primary 1
  • Rated Cross-Section: 33x23 mm
  • Rated Frequency (f): 50 … 60 Hz
  • RoHS Declaration: 9AKK108470A7636
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20250213
  • REACH Declaration: 9AKK108467A9482
  • REACH Information: True - contains substances > 0.1 mass percentage
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B: Business To Consumer

More info

▲
Technical
Cable UseVertical Bar
Rated Primary Current (Ipn)100 A
Rated Secondary Current (Isn)5 A
Current Limit FunctionFS 10
Accuracy±1%
Number of InputsPrimary 1
Rated Cross-Section33x23 mm
Electrical
Rated Frequency (f)50 … 60 Hz
Material Compliance
RoHS Declaration9AKK108470A7636
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20250213
REACH Declaration9AKK108467A9482
REACH InformationTrue - contains substances > 0.1 mass percentage
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Environmental
Degree of ProtectionIP20
Dimensions
Product Net Width93 mm
Product Net Height106 mm
Product Net Depth / Length40 mm
Product Net Weight0.83 kg
Dimension Diagram9AKK108470A9331
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight0.83 kg
E-Number (Finland)6719131
Replacement Product ID (NEW)2CSG101100R1101
Certificates and Declarations
Declaration of Conformity - CE9AKK108470A7636
Installation
Instructions and Manuals9AKK108470A3838
Mounting TypeThrough Primary
External Classifications and Standards
ETIM 9EC002048 - Current transformer
ETIM 10EC002048 - Current transformer

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
