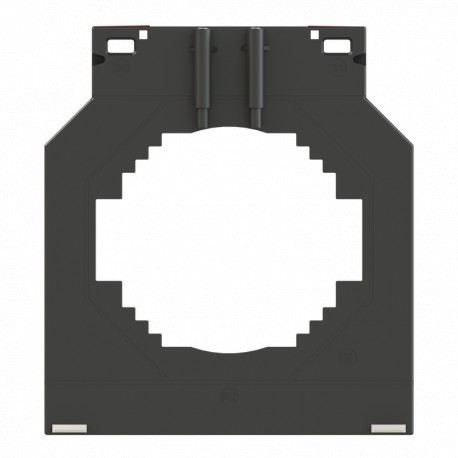

2CSG280635R1000 ABB Intens transformer. CT1M-10 1200
2CSG280635R1000
280635
ABB
1 Pcs.
Intens transformer. CT1M-10 1200
CT1M-10 1200 Current Transformer
Automation > Current transformer
AER and Transformers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 2CSG280635R1000 instrument transformer provides precise current transformation in industrial switchgear installations, converting high main circuit currents for monitoring and protective gear.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Cable Use: Cable and Horizantal/Vertical Bar
- Rated Primary Current (I pn ): 1200 A
- Rated Secondary Current (I sn ): 5 A
- Current Limit Function: FS 5
- Accuracy: ±0.5%
- Number of Inputs: Primary 1
- Cable Cross-Section: 86 mm
- Rated Cross-Section: 100x30 mm
- Rated Frequency (f): 50 … 60 Hz
- RoHS Declaration: 9AKK108470A7636
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20250213
- REACH Declaration: 9AKK108467A9482
- REACH Information: True - contains substances > 0.1 mass percentage
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
More info
▲| Technical | |
|---|---|
| Cable Use | Cable and Horizantal/Vertical Bar |
| Rated Primary Current (Ipn) | 1200 A |
| Rated Secondary Current (Isn) | 5 A |
| Current Limit Function | FS 5 |
| Accuracy | ±0.5% |
| Number of Inputs | Primary 1 |
| Cable Cross-Section | 86 mm |
| Rated Cross-Section | 100x30 mm |
| 80x50 mm | |
| 70x60 mm | |
| Electrical | |
| Rated Frequency (f) | 50 … 60 Hz |
| Material Compliance | |
| RoHS Declaration | 9AKK108470A7636 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20250213 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP20 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 155 mm |
| Product Net Depth / Length | 45 mm |
| Product Net Weight | 1.06 kg |
| Dimension Diagram | 9AKK108470A9329 |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 1.06 kg |
| E-Number (Finland) | 6719120 |
| E-Number (Norway) | 8023141 |
| Replacement Product ID (NEW) | 2CSG721200R1101 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108470A7636 |
| EU Data Act Compliance Declaration | Not applicable |
| Installation | |
| Instructions and Manuals | 9AKK108470A3838 |
| Mounting Type | Through Primary |
| External Classifications and Standards | |
| ETIM 9 | EC002048 - Current transformer |
| ETIM 10 | EC002048 - Current transformer |
