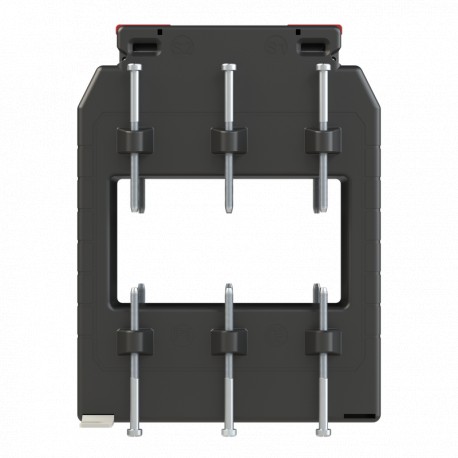

2CSG280515R1000 ABB Intens transformer. CT1M-7 2500
2CSG280515R1000
280515
ABB
1 Pcs.
Intens transformer. CT1M-7 2500
CT1M-7 2500 Current Transformer
Automation > Current transformer
AER and Transformers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Abb 2CSG280515R1000 CT1M-7 current transformer is designed for horizontal busbar configurations, accurately reducing high electrical currents for switchboard metering and monitoring equipment.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Cable Use: Horizantal Bar
- Rated Primary Current (I pn ): 2500 A
- Rated Secondary Current (I sn ): 5 A
- Current Limit Function: FS 10
- Accuracy: ±0.5%
- Number of Inputs: Primary 1
- Rated Cross-Section: 101x56 mm
- Rated Frequency (f): 50 … 60 Hz
- RoHS Declaration: 9AKK108470A7636
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20250213
- REACH Declaration: 9AKK108467A9482
- REACH Information: True - contains substances > 0.1 mass percentage
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B: Business To Consumer
More info
▲| Technical | |
|---|---|
| Cable Use | Horizantal Bar |
| Rated Primary Current (Ipn) | 2500 A |
| Rated Secondary Current (Isn) | 5 A |
| Current Limit Function | FS 10 |
| Accuracy | ±0.5% |
| Number of Inputs | Primary 1 |
| Rated Cross-Section | 101x56 mm |
| Electrical | |
| Rated Frequency (f) | 50 … 60 Hz |
| Material Compliance | |
| RoHS Declaration | 9AKK108470A7636 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20250213 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP20 |
| Dimensions | |
| Product Net Width | 130 mm |
| Product Net Height | 170 mm |
| Product Net Depth / Length | 51 mm |
| Product Net Weight | 1.42 kg |
| Dimension Diagram | 9AKK108470A9327 |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 1.42 kg |
| E-Number (Finland) | 6719110 |
| Replacement Product ID (NEW) | 2CSG421240R1101 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108470A7636 |
| Installation | |
| Instructions and Manuals | 9AKK108470A3838 |
| Mounting Type | Through Primary |
| External Classifications and Standards | |
| ETIM 9 | EC002048 - Current transformer |
| ETIM 10 | EC002048 - Current transformer |
