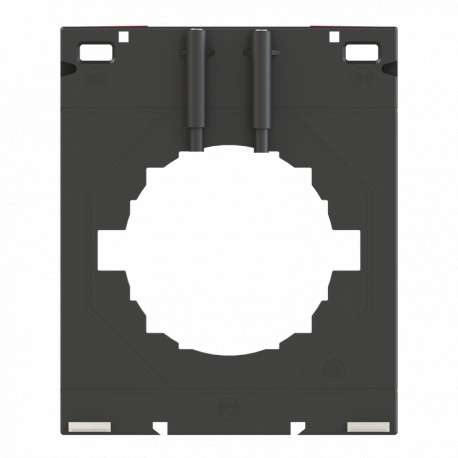

2CSG280495R1000 ABB Intens transformer. CT1M-6 1500
2CSG280495R1000
280495
ABB
1 Pcs.
Automation > Current transformer
AER and Transformers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed by ABB, the CT1M-6 intensity transformer steps down substantial primary electrical currents into safe secondary levels suitable for standard measurement devices. This hardware is heavily deployed in electrical distribution infrastructures to monitor heavy busbar and cable loads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Cable Use: Cable and Horizantal/Vertical Bar
- Rated Primary Current (I pn ): 1500 A
- Rated Secondary Current (I sn ): 5 A
- Current Limit Function: FS 5
- Accuracy: ±0.5%
- Number of Inputs: Primary 1
- Cable Cross-Section: 65 mm
- Rated Cross-Section: 80x10 mm
- Rated Frequency (f): 50 … 60 Hz
- RoHS Declaration: 9AKK108470A7636
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20250213
- REACH Declaration: 9AKK108467A9482
- REACH Information: True - contains substances > 0.1 mass percentage
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
More info
▲| Technical | |
|---|---|
| Cable Use | Cable and Horizantal/Vertical Bar |
| Rated Primary Current (Ipn) | 1500 A |
| Rated Secondary Current (Isn) | 5 A |
| Current Limit Function | FS 5 |
| Accuracy | ±0.5% |
| Number of Inputs | Primary 1 |
| Cable Cross-Section | 65 mm |
| Rated Cross-Section | 80x10 mm |
| 60x30 mm | |
| 50x50 mm | |
| Electrical | |
| Rated Frequency (f) | 50 … 60 Hz |
| Material Compliance | |
| RoHS Declaration | 9AKK108470A7636 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20250213 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP20 |
| Dimensions | |
| Product Net Width | 104 mm |
| Product Net Height | 126 mm |
| Product Net Depth / Length | 45 mm |
| Product Net Weight | 0.80 kg |
| Dimension Diagram | 9AKK108470A9326 |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.8 kg |
| E-Number (Finland) | 6719108 |
| Replacement Product ID (NEW) | 2CSG421220R1101 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108470A7636 |
| Installation | |
| Instructions and Manuals | 9AKK108470A3838 |
| Mounting Type | Through Primary |
| External Classifications and Standards | |
| ETIM 9 | EC002048 - Current transformer |
| ETIM 10 | EC002048 - Current transformer |
